User's Guide

> Adjustment > [Trimmer Unit Adjustment] > [Advanced Setting Mode] > Screen

Screen

Overview
Screen Access
Screen

Overview

Adjust [Advanced Setting Mode] of Trimmer Unit TU-510.

Adjust the trim position, slit position, crease position, and perforation position.

Screen Access

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Advanced Setting Mode]

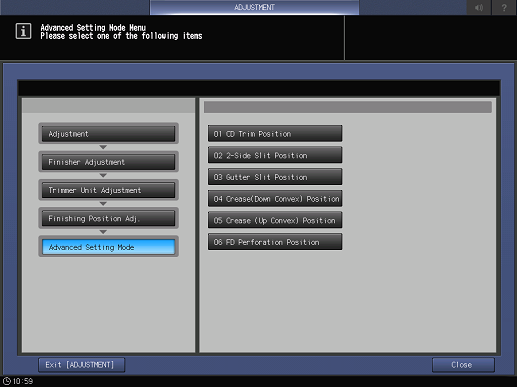

Screen

 Common keys

Key name

Description

[Print Mode]

Outputs a sample for adjustment.

[Close]

Moves to the previous screen.

[Return]

Moves to the previous screen.

[Exit [ADJUSTMENT]]

Closes the [ADJUSTMENT] screen.
