[CD Perforation Position]
Overview
Adjust the perforation position in the crosswise direction.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Trimmer Unit TU-510 with Perforation Unit PE-102 mounted | ||
Required items | - | ||
Setting items | [Position] | Select the perforation position in the crosswise direction. | |
[Front Length] | Select the jump position before a perforation in the crosswise direction. Adjust this when shifting occurs at the second position before the perforation in the crosswise direction with [Four Edge Trim Mode]. | ||
[Rear Length] | Select the jump position behind the perforation in the crosswise direction. Adjust this when shifting occurs at the second position behind the perforation in the crosswise direction with [Four Edge Trim Mode]. | ||
Perforation timing selection key | Select what numbered perforation position is adjusted. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

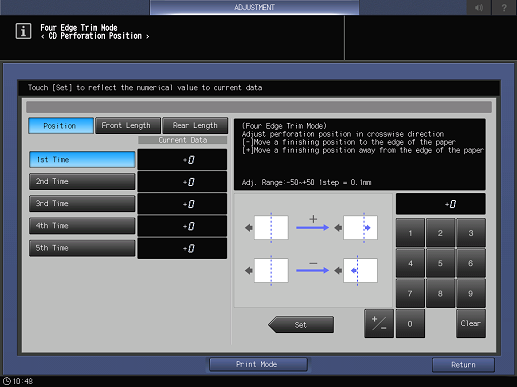

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Four Edge Trim Mode] - [CD Perforation Position] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Four Edge Trim Mode] - [CD Perforation Position] | |||
Procedure
1
Press [Print Mode].
2
Load the desired paper into a paper tray, and select that paper tray.
3
Press Start on the Control panel.
A sample is output.
4
Check the perforation position.
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6
Press [Position].
7
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

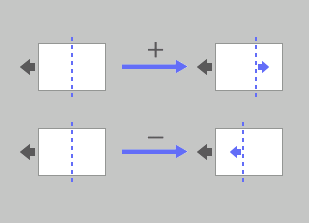

(-) To move the perforation position to the lead edge (+) To move the perforation position to the rear edge
[Adj. Range:-50~+50 1step = 0.1mm]
8
Press [Front Length].
9
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

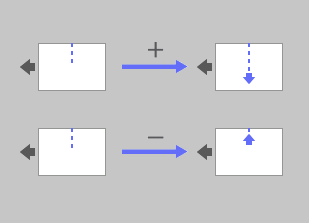

(-) To shorten the perforation, (+) To extend the perforation
[Adj. Range:-50~+50 1step = 0.1mm]
10
Press [Rear Length].
11
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

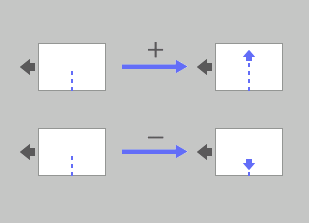

(-) To shorten the perforation, (+) To extend the perforation
[Adj. Range:-50~+50 1step = 0.1mm]
12
Repeat steps 1 to 11 until the desired result is obtained.
