Adjusts the temperature of the glue tank and application roller to finish the printed material when binding with Perfect Binder PB-503.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Glue Tank -Low] | Adjusts the control temperature of the glue tank heater. Default: 185°C Recommended temperature: Bottom of glue tank = 180°C to 190°C | |
[Glue Apply Roller] | Adjusts the temperature to control the roller heater. Default: 165°C Recommended temperature: Gluing roller = 160°C to 170°C | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

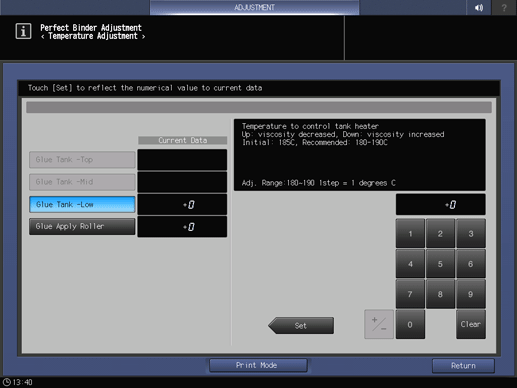

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Temperature Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Temperature Adjustment] |
When using any paper tray, you need to set a cover tray by selecting [Perfect Bind] of [Output Setting]. For details, refer to [Cover Tray].
A perfect binding sample is output.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
Increasing the temperature lowers the glue viscosity. Decreasing the temperature raises the glue viscosity.
