Adjust the loop amount of the registration roller section in the staple finisher when feeding paper from the PostInserter PI-502.
Perform this adjustment when problems such as bending or wrinkling of the paper, or paper jams occur.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with PostInserter PI-502 mounted | ||
Required items | - | ||
Setting items | [PI Upper Tray] | Adjusts the loop amount of the upper tray. | |
[PI Lower Tray] | Adjusts the loop amount of the lower tray. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

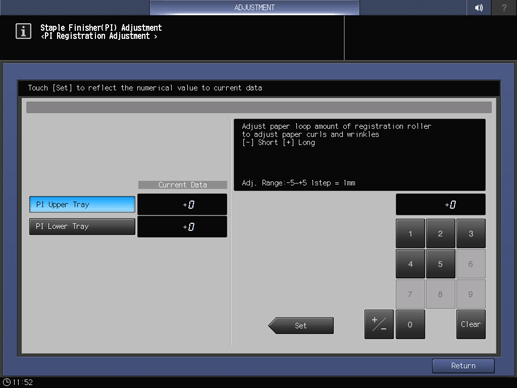

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(PI) Adj.] - [PI Registration Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(PI) Adj.] - [PI Registration Adjustment] |
[PI Upper Tray]: Exit the [Adjustment] menu once, and follow the normal printing procedure to output a job that is fed from the Upper tray.
[PI Lower Tray]: Select any output mode on the Control panel of PostInserter PI-502, and press Start/Stop button.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-5~+5 1step = 1mm]
