Adjust the punch hole position of FoldingUnit FD-503. Perform this function when the punch holes are very misaligned.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | FoldingUnit FD-503 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the punch position common to all the paper sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

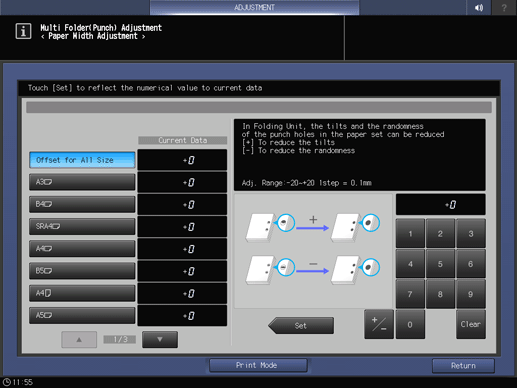

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Punch) Adj.] - [Paper Width Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Punch) Adj.] - [Paper Width Adjustment] |
A sample is output.
Number of punch holes | Standard value |
---|---|
2 holes / 4 holes | 5.0 mm or more in diameter |
3 holes | 6.5 mm or more in diameter |
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]
Adjust the setting value by referencing the figure.
If the setting value is too great, the center of punch holes may be misaligned. If the setting value is too small, the punch hole positions may become uneven.
