Adjust the distance between the center of the punched output paper and the center of the punch holes, and arrange the finishing.
Perform this function when the punch position is misaligned.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Punch Unit PK-525 mounted | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the punch hole position common to all the paper sizes. | |
Paper size selection key | Press the paper size selection key. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

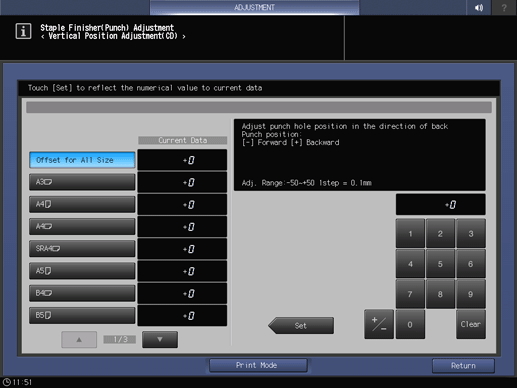

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Vertical Position Adj.(CD)] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Vertical Position Adj.(CD)] |
[Output Setting] is automatically set to [Punch].
A sample is output.

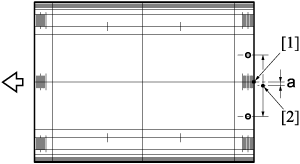

Standard value: a = 0 mm -1 mm to +1 mm
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
Punch position at paper edge: [-] Forward [+] Backward
[Adj. Range:-50~+50 1step = 0.1mm]
