Backing Up Data
Overview
You can store job data on the HDD of this system on an external storage device, and restore any such previously stored data. This feature is a safety measure in case data is accidentally lost, or for if you want to restore the system to a previous state.
For details about the back up function and restore function, refer to [HDD Restore/Backup].
- If Security Enhanced Mode is selected, [HDD Restore/Backup] is grayed out (inactive) and cannot be selected.
All HDD Data
1
Connect the external storage device used for backing up and restoring to the USB port.
2
Press Utility/Counter, and then press in order of [Administrator Setting] - [Security Setting] - [HDD Management Setting] - [HDD Restore/Backup].
3

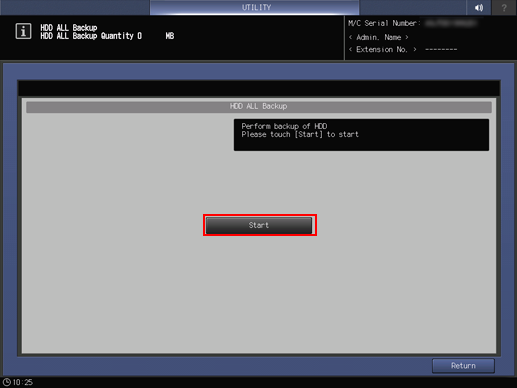

When backing up, press [HDD ALL Backup].
Press [Start] to begin the backup process.
4
Press [HDD ALL Restore] if restoring.
Press [Start] and a dialog box requesting confirmation to overwrite all data on the HDD is displayed. Press [Yes] to begin restoring all the data.
5
When complete, set the Sub power switch OFF/ON.
Specific directory of the HDD
Backup or restore only the jobs among the HDD store jobs that are saved in the backup folder directly under the Public folder.
1
Connect the external storage device used for backing up and restoring to the USB port.
2
Press Utility/Counter, and then press in order of [Administrator Setting] - [Security Setting] - [HDD Management Setting] - [HDD Restore/Backup].
3

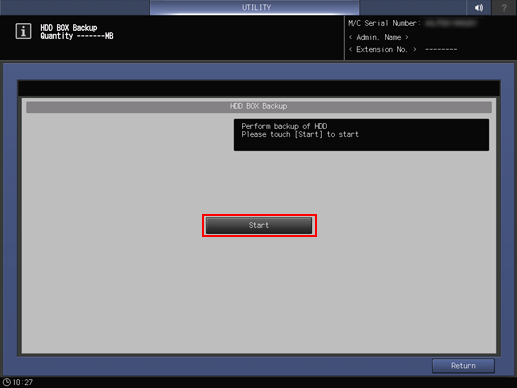

When backing up, press [HDD BOX Backup].
Press [Start] to start backup of the data stored in the backup folder on the HDD.
4

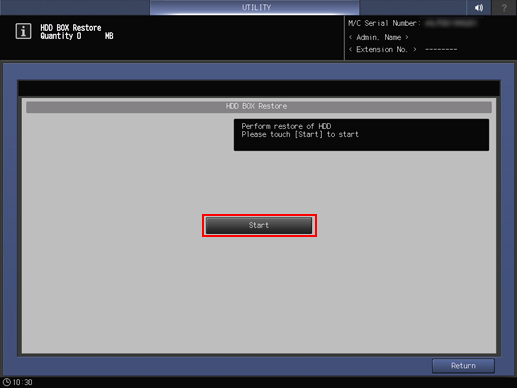

Press [HDD BOX Restore] if restoring.
Press [Start] to start restoring of the data to the backup folder on the HDD.
5
When complete, set the Sub power switch OFF/ON.
