Check that the "PING" command is sent from the system.
Procedure
1
Press Utility/Counter, and then press in order of [Administrator Setting] - [Network Setting] - [NIC Settings].
2

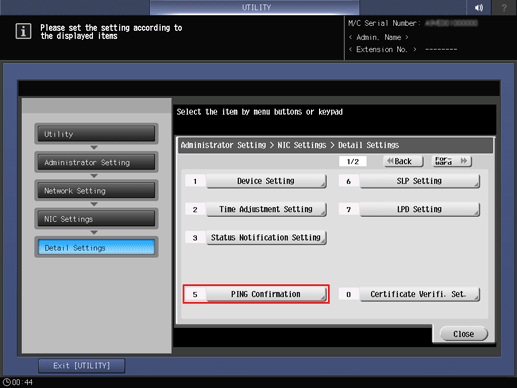

Press in order of [For-ward] - [Detail Settings] - [PING Confirmation].
3

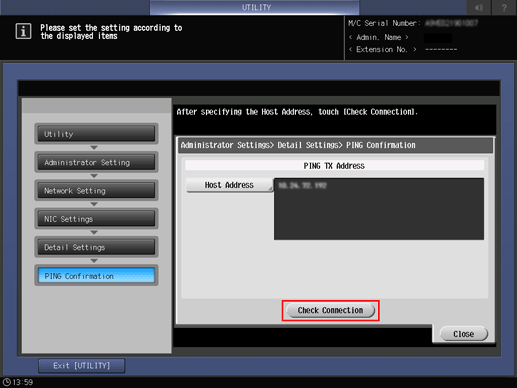

Enter the host address and press [Check Connection].
4
If sent successfully, a message is displayed saying "PING completed successfully".
If there were any issues in the communication, a message such as "Check the connection and settings" is displayed.
