Configure the settings on the system side so that it can be connected to the server. Settings other than the LDAP settings detailed here are required to use external server authentication. However, you only need to configure the LDAP settings detailed here to perform an LDAP search.
Here, you are required to log in to Web Connection as the administrator.

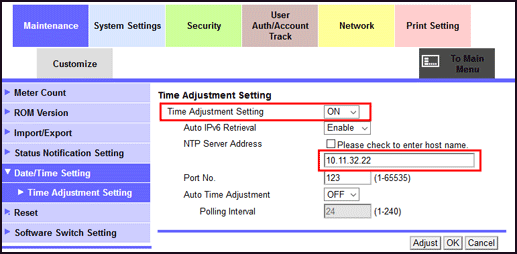

Here, "10.11.32.22", the IP address of the NTP server for the external server constructed on Constructing Active Directory on Windows, has been entered.

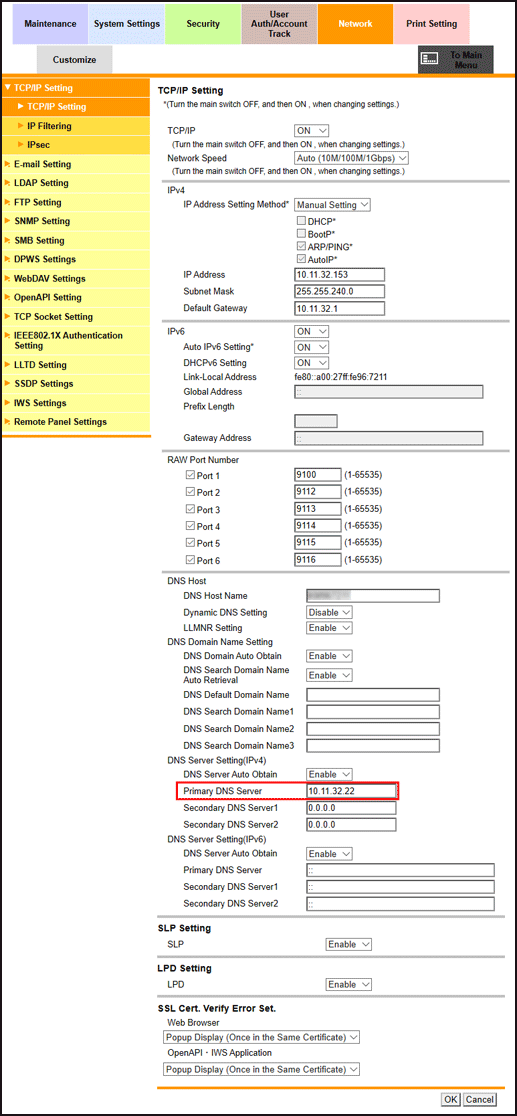

Here, "10.11.32.22" has been entered.

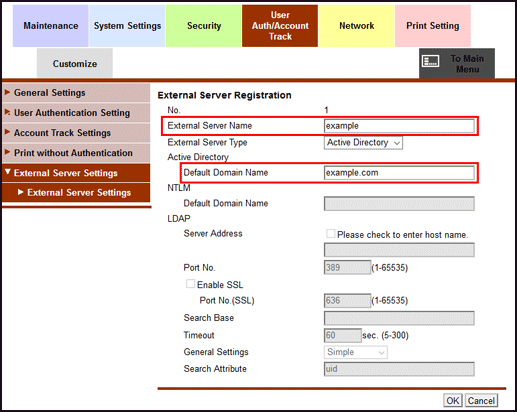

Here "example" and "example.com" have been entered respectively. Use the [Root domain name] entered on Constructing Active Directory Domains.

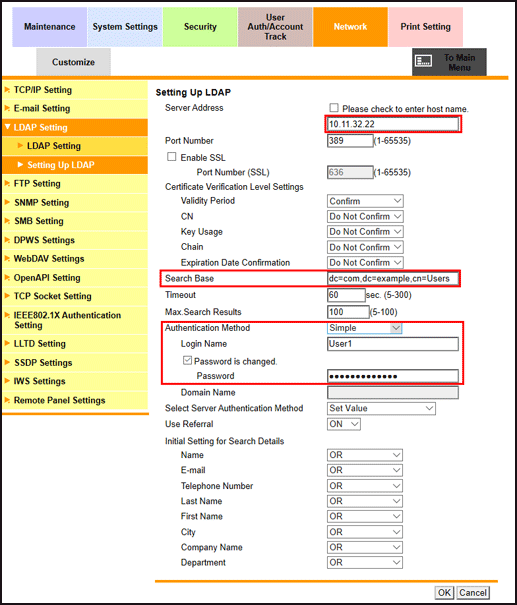

[Server Address]: IP address of the external server. Here, "10.11.32.22" has been entered.
[Search Base]: dc (domain controller), cn (common name). Here "cn=Users,dc=example,dc=com" has been entered. Based on the domain controller used in Registering User Objects.
[Authentication Method]: [Simple]. For the login information, enter any of the users registered in Registering User Objects. Here, login information for "User1" has been entered.
