[Annotation Setting]
Overview
Register stamps used in [STORE], [COPY], or [SCAN] as optional stamps in advance.
You can also edit or delete optional stamps.
Up to 40 optional stamps can be registered.
Reference
- For details about how to enter characters, refer to Entering Text.
Setting Procedure (Registering a New Optional Stamp)
1

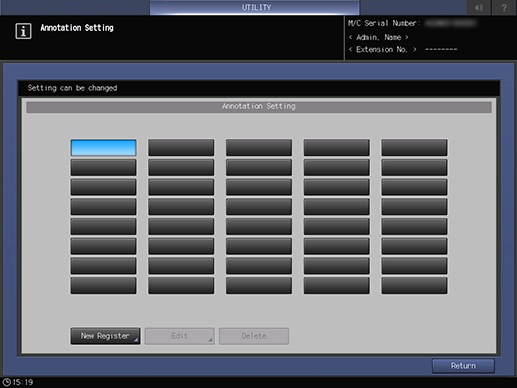

Select any unregistered stamp key "
", and press [New Register].
", and press [New Register].
Selecting an unregistered optional stamp key highlights in blue.
2

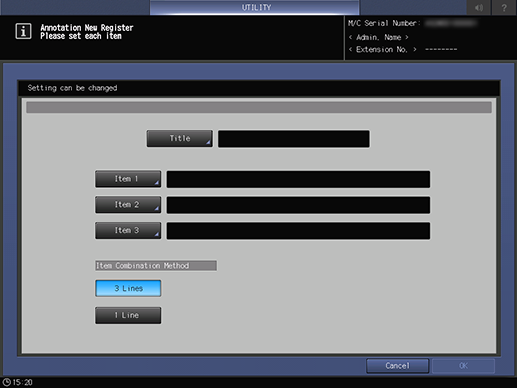

Press [Title].
3

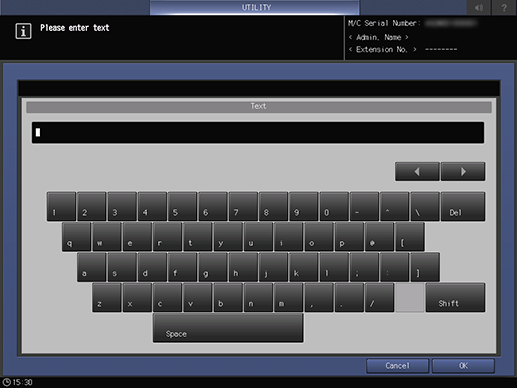

Enter a title.
The title is required. Registration will not be completed unless a title is entered.
4
Press [OK].
5

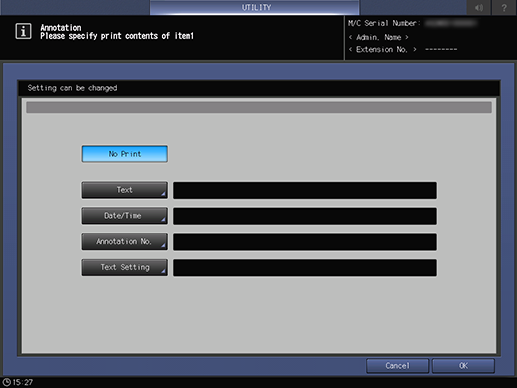

Press [Item 1].
6
Select the desired one from [Text], [Date/Time], and [Annotation No.].
Multiple print contents cannot be set to a single item.
NOTICE
- When not printing [Item 1] ([Item 2] or [Item 3]), select [No Print]. Note that the specified print contents will be deleted if you press [No Print] after setting [Text], [Date/Time], or [Annotation No.].
7
Set print contents.
[Text]: Sets text string to be printed as [Annotation]. Up to 40 single-byte alphanumeric characters can be entered.

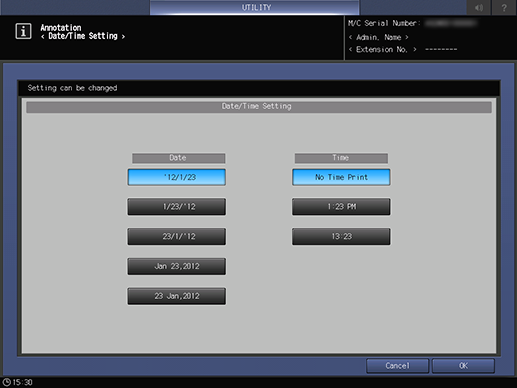

[Date/Time]: Sets the format of the date and time to be printed as [Annotation]. If [No Time Print] is selected, the time is not printed.
[Annotation No.]: Sets [Text] and [Annotation No.] to be printed as [Annotation]. For details, refer to Setting Procedure (Setting [Annotation No.]).
8
After the setting is completed, press [OK].
9

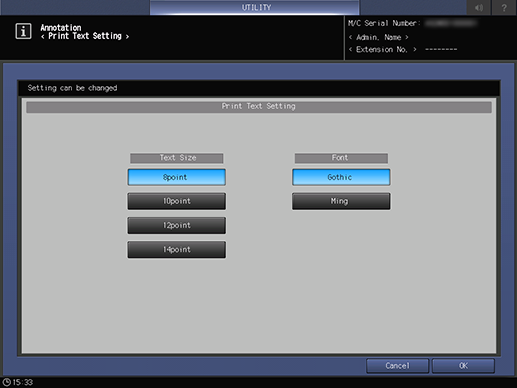

Press [Text Setting], and set [Text Size] and [Font] for the print contents specified in steps 6 to 8.
10
Press [OK].
11
Press [OK] again to confirm settings.
12
Select [Item 2] and [Item 3] as needed, and set print contents according to steps 6 to 11.
13
If multiple items are selected, set the stamp print layout in [Item Combination Method].
For details, refer to [Item Combination Method] Setting Example.
14
Press [OK].
The optional stamp is registered, and the title is displayed on the optional stamp key of the [Annotation Setting] screen.
Setting Procedure (Editing or Deleting an Optional Stamp)
1

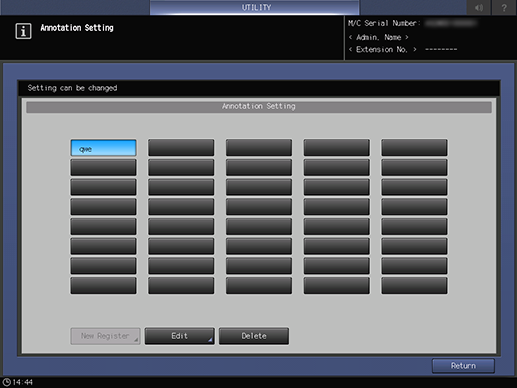

Select a registered optional stamp key to edit, and press [Edit].
2
Follow steps 2 to 14 on Setting Procedure (Registering a New Optional Stamp) to edit the existing setting.
3
When deleting the registered optional stamp setting, select the registered optional stamp key to delete, and press [Delete].
The deletion confirmation dialog box is displayed.
4
Press [Yes].
The optional stamp setting is deleted, and the title disappears from the [Annotation Setting] screen.
Setting Procedure (Setting [Annotation No.])
Set [Text] and [Annotation Number] to be printed as [Annotation].
Both [Text] and [Annotation Number] can be printed simultaneously.
1

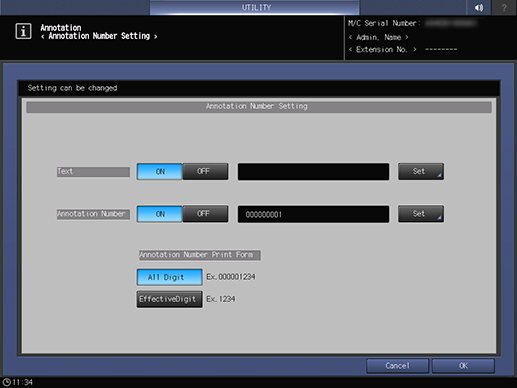

Refer to steps 1 to 6 on Setting Procedure (Registering a New Optional Stamp) to open the [Annotation No.] screen.
2
Press [ON] of [Text] or [Annotation Number].
To print [Text] and [Annotation Number] at the same time, press [ON] of the both.
3
Press [Set].
The entry screen opens.
4

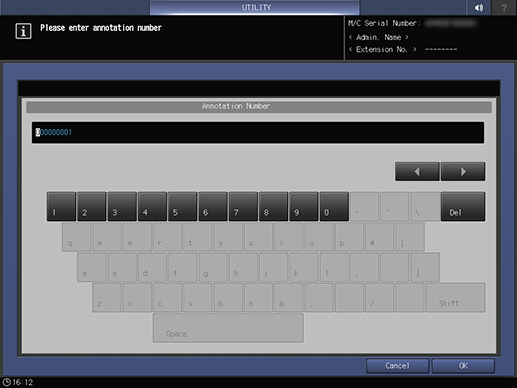

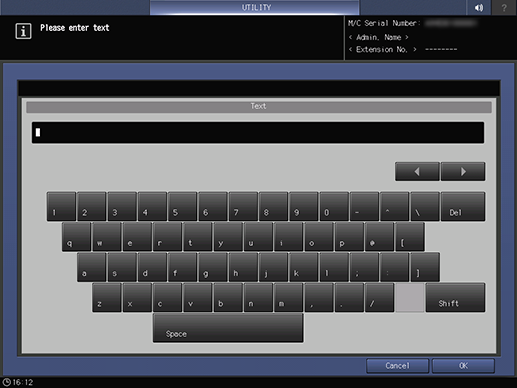

Enter [Text] or [Annotation Number].
5
Press [OK].
6
Press [Annotation Number Print Form] to select the print format.
7
Press [OK].
[Item Combination Method] Setting Example
When multiple items are selected for printing ([Item 1] to [Item 3]), this sets the print layout for those items.
Printing example with [3 Lines] and [1 Line] selected
[Item 1]: [Text] (Example: Annotation stamp) [Item 2]: [Date/Time] (Example: '12/12/30) [Item 3]: [Annotation No.] (Example: ABCDE 1234) Selecting [3 Lines] to print the items above | Annotation stamp '12/12/30 ABCDE 1234 |
[Item 1]: [Text] (Example: Annotation stamp) [Item 2]: [Date/Time] (Example: '12/12/30) [Item 3]: [No Print] Selecting [1 Line] to print the items above | Annotation stamp '12/12/30 (When printing to one row, a space is entered between setting items.) |
