[ChangeTrayPaper]

When the paper setting of the Paper tray used for printing is different from that of the [Reserved Job], change the paper setting of the Paper tray to that of the [Reserved Job].

You can also change the Paper tray you want to use.

NOTICE

The following setting is required to use this function.

• Set [Enhanced Security Mode] to [OFF].

Tips

The conditions of the Paper tray for which [ChangeTrayPaper] is possible are as follows. The Paper tray for which the paper setting cannot be changed is grayed out and is not able to be selected.

• The job with the paper setting changed is stopped or idling.
• The Paper tray with the paper setting changed is not scheduled to be used for jobs before the job with the paper setting changed.
• Paper cannot be fed because tray information does not match.

Reference

• For details about [Enhanced Security Mode], refer to [Enhanced Security Mode].

1

Select the job bar ([Reserved Job]) to change the paper setting of the Paper tray.

The [Tray Select] key is displayed above the job bar display area, and the paper setting display is shown in the job bar display area.

2

When you want to use multiple Paper trays, for the selected job, press the [Tray Select] key to select Paper tray you want to change the paper setting.

3

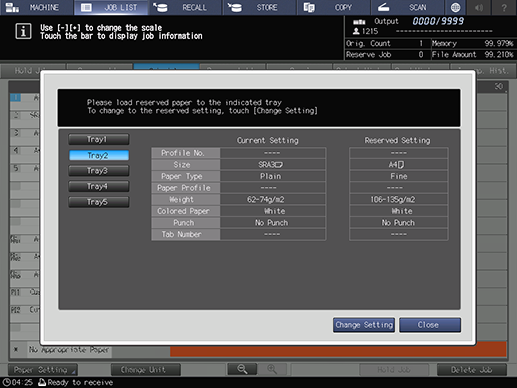

Press [ChangeTrayPaper].

• When you want to change the paper setting of each Paper tray, press [Paper Setting]. For details about the paper setting, refer to [Change Set].

4

Select the Paper tray you want to change the paper setting.

5

Press [Change].

The confirmation dialog box is displayed.

6

Load paper into the Paper tray selected in step 3.

7

Press [OK].
