[Auto Image Adj.]
Overview
Conduct the automatic image adjustment when printing.
This function allows you to adjust the image misalignment or gradation.

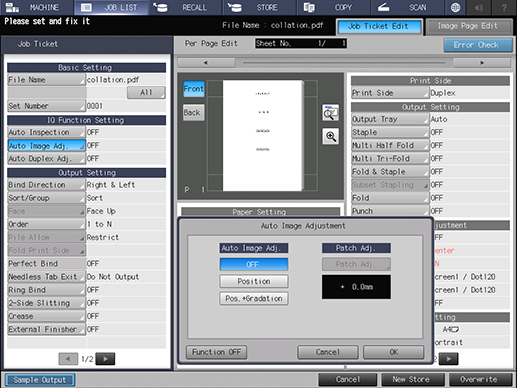

Setting Items
Setting item | Description | ||
|---|---|---|---|
[Auto Image Adj.] | [OFF] | Does not perform auto image adjustment. | |
[Position] | Performs auto image adjustment for the position. | ||
[Pos.+Gradation] | Performs auto image adjustment for the position and gradation. | ||
[Patch Adj.] | Adjust the position of the patch printed on the trim margin. | ||
Setting Procedure (Setting the Patch Adjustment)
Adjust the position of the patch printed on the trim margin.
NOTICE
The following setting is required to use this function.
- Set [Auto Image Adj.] to [Pos.+Gradation].
1
Press [Patch Adj.].
The setting screen is displayed.

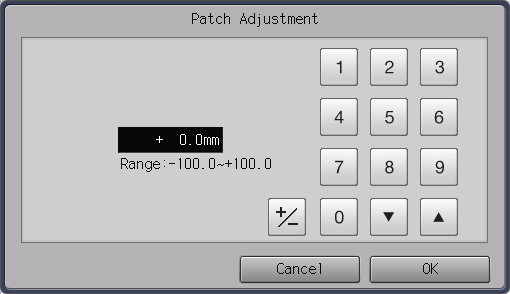

2
Enter the adjustment value of the patch position.
Use [+ / -] to select the positive or negative value.
Patch position: Entering the positive value moves the patch position outside paper, and entering the negative value moves it inside paper.
Movement direction: Crosswise direction
[Range:-100.0~+100.0]
3
Press [OK].
