Setting Inspection Areas

Set an area that is not subject to automatic inspection, or an area targeted for special inspection.

Efficient inspection is enabled by preventing unnecessary errors and automating checks such as serial number printing.

Reference

• For details about configuring inspection area settings, refer to [InspectionAreaSet.].

1

Press [Ref. Image Manage.] on the [MACHINE] screen.

2

Select the reference image for which you want to configure the inspection area settings, and press [InspectionAreaSet.].

3

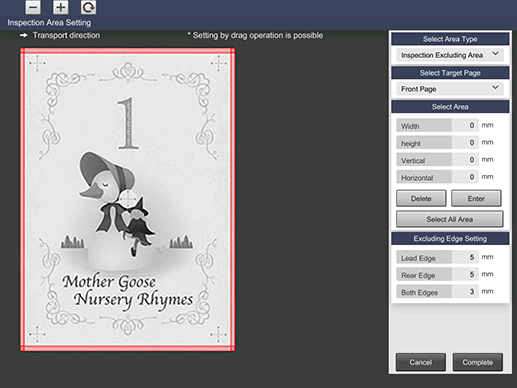

Configure the inspection area settings on the settings screen.

• For details about the setting, refer to [InspectionAreaSet.].

• Specified areas are shown with a colored frame on the preview screen.

4

Press [Complete].
