Set the tab height.

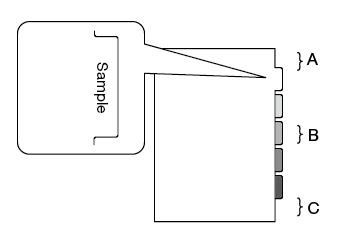

The tab height indicates the height for each tab ("B" in the figure below).
Category | Print Workflow | ||
Location | Machine | - | |
Printer driver | PS Plug-in Driver | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Tab Height] | Enter the tab height. Range A4 long-edge tab: 2.5 mm to 297 mm / 0.09" to 11.69"* Letter long-edge tab: 2.5 mm to 279.4 mm / 0.09" to 11.69"* *: Available when [Space Above] and [Space Below] are set to 0 mm / 0 inch. | |
Remarks | - | ||
Reference | - | ||
Screen access | PS Plug-in Driver - [Tab Settings] - [Tab 1] | ||
PS Plug-in Driver - [Tab Settings] - [Tab 2] |
