[Cover Size]
Overview
Set the paper size used for perfect binding covers.
To manually set the paper size, click [Custom Size...].
NOTICE
- The following setting is required to use this function.
- Set [Cover Print Mode] to a setting other than [Off].
Tips
- The Image Controller is required to use this function. For details, refer to What Is the PS Plug-in Driver?.
Reference
- For details about [Cover Print Mode], refer to [Cover Print Mode].
Specifications
Category | Print Workflow | ||
Location | Machine | - | |
Printer driver | PS Plug-in Driver | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | Paper size list | Select the paper size from the menu list. | |
[Custom Size...] | Displays the [Cover Custom Size Settings] screen, and allows you to set the desired size. | ||
Remarks | - | ||
Reference | - | ||
Screen access | PS Plug-in Driver - [PB] | ||
Procedure
1
Click [Custom Size...].

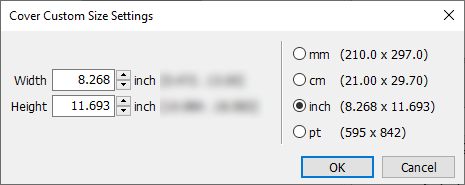

The [Cover Custom Size Settings] screen is displayed.
2
Enter the desired numeric value in [Width] and [Height].
Enter the numeric value in the setting range displayed on the screen.
Some paper sizes cannot be set depending on the optional paper feeder that is mounted on the system. For details about the available sizes, refer to Optional Part Names and Specifications for Paper Feed, or contact your service representative.
The custom size display unit can be changed.
3
Click [OK].
The custom size is registered.
The registered custom size can be selected from the cover size list.
