[Rotate/Skew]
Overview
Perform adjustments when the entire image is rotated clockwise or counterclockwise or a diagonal skew is detected.
[Rotate/Skew] is automatically set to the compensation value by making the following adjustments.
[Chart Adjustment] of [Rotate/Skew]
[Chart Adjustment] of [Back]
[Scan Meas.] adjustment
The compensation value can be adjusted manually.
[Rotate/Skew] adjustment example
[Rotate]: When the image on the front side is skewed clockwise, press [Front] - [Rotate], and enter the positive value. The image on the front side rotates counterclockwise.
[Skew]: If a skew slanting toward the upper right is detected on the front side of the image, press [Front] - [Skew], and enter the negative value. The skew reduces, and the image approaches a normal form.
NOTICE
The following setting is required to use this function.
- Set [Both Sides Rotate/Skew] in [Common Setting] to [Enable].
Tips
- When a compensation value has been entered on the [Rotate/Skew] screen, even if [Both Sides Rotate/Skew] is set to [Disable], the compensation value information remains. If [Both Sides Rotate/Skew] is set to [Enable], the chart adjustment can be made with the same compensation value.
Reference
- For details about the chart adjustment setting, refer to [Chart Adjustment] ([Rotate/Skew]).
- For details about the [Both Sides Rotate/Skew] setting, refer to [Common Setting].
Setting Procedure (Setting the [Front] Side)
Adjust the rotation and distortion of the image to print on the front side.
Prepare a test chart to check a misalignment between the front and back sides before adjustment. For convenient use, set a reference point for measuring the rotation and distortion on a test chart.
1
After outputting an adjustment chart, confirm the rotation or distortion.
If there is misalignment, proceed to step 2.
2

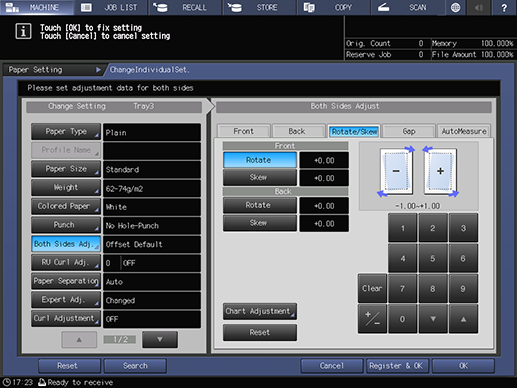

Press [Rotate] on the [Front].
3
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit the rotation of a print image.
Image rotation direction: (-) Clockwise (+) Counterclockwise
Adjustment range: [-1.00~+1.00]
4

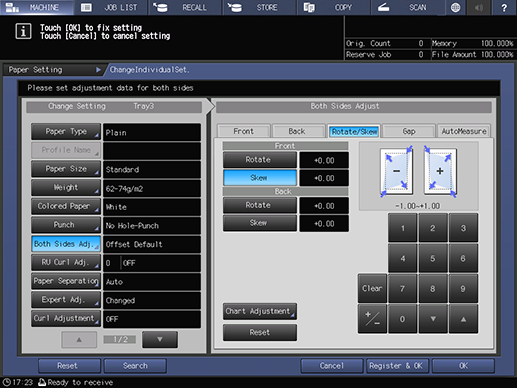

Press [Skew] on the [Front].
Adjust a distortion in the diagonal direction of the image.
5
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Image adjustment: (-) The right shoulder of the image is lowered. (+) The left shoulder of the image is lowered.
Adjustment range: [-1.00~+1.00]
6
Output a chart of the front side.
Compare the output chart with a chart for adjustments. Check that the rotation and distortion on the front side has improved.
Repeat steps 2 to 5 until the desired result is obtained.
Setting Procedure (Setting the [Back] Side)
Adjust the rotation and distortion of the image to print on the back side.
Prepare a test chart to check a misalignment between the front and back sides before adjustment. For convenient use, set a reference point for measuring the rotation and distortion on a test chart.
1
After outputting an adjustment chart, confirm the rotation or distortion.
If there is misalignment, proceed to step 2.
2
Press [Rotate] on the [Back].
3
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit the rotation of a print image.
Image rotation direction: (-) Clockwise (+) Counterclockwise
Adjustment range: [-1.00~+1.00]
4

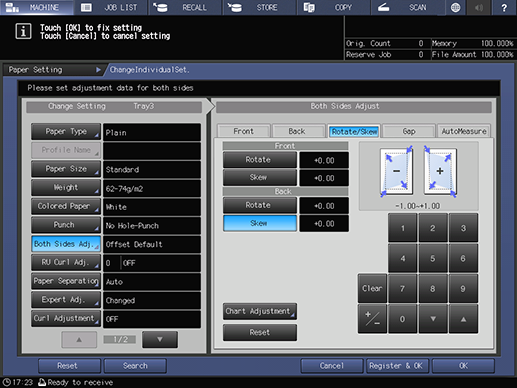

Press [Skew] on the [Back].
Adjust a distortion in the diagonal direction of the image.
5
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Image adjustment: (-) The right shoulder of the image is lowered. (+) The left shoulder of the image is lowered.
Adjustment range: [-1.00~+1.00]
6
Output a chart of the back side.
Compare the output chart with a chart for adjustments. Check that the rotation and distortion on the back side has improved.
Repeat steps 2 to 5 until the desired result is obtained.
