Screen

Overview
Screen Access
Screen

Overview

Create a new trimmer profile.

Up to 100 trimmer profiles can be registered.

Screen Access

Touch panel - [MACHINE] - [Trimmer Profile] - [Create]

Web Connection - Login screen - [Finisher Manager] - [TU-510 Profile Manager] - [Create]

Web Utilities - [Finisher Manager] - [TU-510 Profile Manager] - [Create]

Screen

Screen with [Four Edge Trim] or [Advanced Setting] selected in [Cut Type]

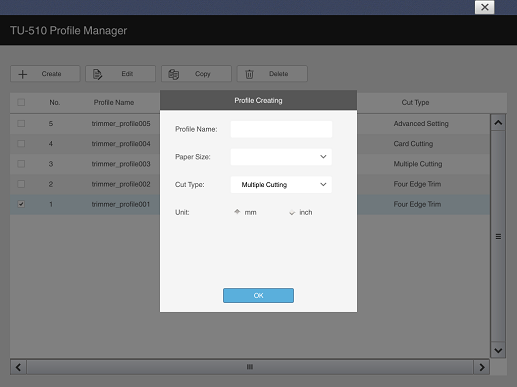

Screen with [Multiple Cutting] or [Card Cutting] selected in [Cut Type]
