[Staple Tip Adjustment]

Change the staple pitch on the Saddle Stitcher SD-513, and adjust the staple tip form.

Make this adjustment when staple tips protrude.

1

Press [Print Mode].

2

Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.

3

Press Start on the Control panel.

A sample is output.

4

Check the shape of the staple tip.

5

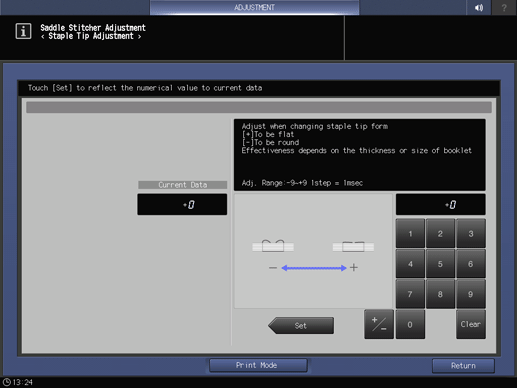

If any adjustments are required, press [Exit PrintMode] to return to the setting screen.

6

Use the on-screen keypad to enter the numeric value.

• Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

• [Adj. Range:-9~+9 1step = 1msec]

7

Repeat steps 1 to 6 until the desired result is obtained.
