What Is [Staple Center Position]?
Overview
Adjust the center position when stapling on the Saddle Stitcher SD-513.
Arrange the finishing of printouts by adjusting the staple position.
NOTICE
- The optional Saddle Stitcher SD-513 is required to use this function.
Setting Items
Screen access

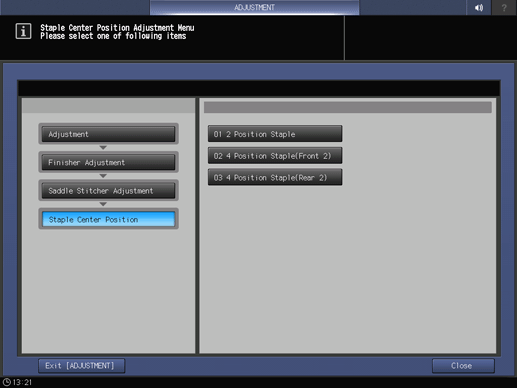

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Staple Center Position]
Setting item | Description |
|---|---|
Adjust the center position when performing the 2-position staple on the saddle stitcher. | |
Adjust the center position when performing the 4-position staple on the saddle stitcher. This function adjusts the 2 front locations of the 4 staple positions. | |
Adjust the center position when performing the 4-position staple on the saddle stitcher. This function adjusts the 2 rear locations of the 4 staple positions. |
