[Density Balance Auto. Adj.]
Overview
Perform [Density Balance Auto. Adj.].
The density unevenness in the main scanning direction can be adjusted by outputting a density balance chart and measuring using various devices.
The operation screen varies depending on the mounted optional devices.
NOTICE
- With a scanner unmounted, this function is not available. Perform [Density Balance Adjustment]. For details, refer to [Density Balance Adjustment].
Tips
- [Package Color Manual Adj.] allows you to perform [Density Balance Auto. Adj.] manually. When you want to make adjustments at the desired time(s), use this option. For details about the [Package Color Manual Adj.], refer to [Package Color Manual Adj.].

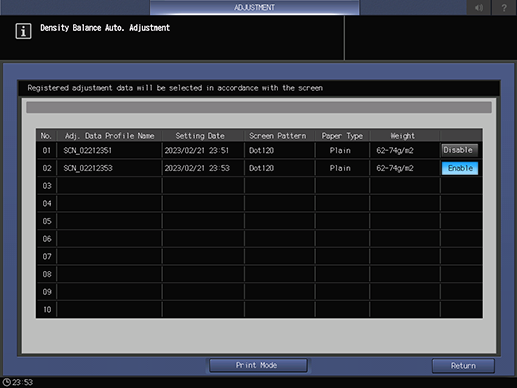

Setting Items (With Intelligent Quality Optimizer IQ-501 Mounted)
NOTICE
- The optional Intelligent Quality Optimizer IQ-501 is required to use this function.
Reference
- For details about the adjustment procedure, refer to [Adjustment / Maintenance].
Setting item | Description |
|---|---|
Adjustment value profile list | Displays a list of adjustment value profiles. |
[Enable] / [Disable] | Each time this item is pressed, [Enable] and [Disable] are switched. |
[Print Mode] | Outputs a chart for measurement. |
Setting Items (With Intelligent Quality Optimizer IQ-501 Unmounted and Scanner Equipped)
Reference
- For details about the adjustment procedure, refer to [Adjustment / Maintenance].
Setting item | Description |
|---|---|
[Output Chart] | Outputs a chart for [Density Balance Auto. Adj.]. |
[Start] | Starts scanning the output chart. |
[Adjustment Data List] | Displays a list of adjustment values registered with [Density Balance Auto. Adj.]. |
