What Is [Crease Position Adjustment]?
Overview
Adjust the crease position of Creaser Unit CR-101 mounted on Saddle Stitcher SD-513.
Arrange the finishing of printouts by adjusting the distance from the paper edge to creases.
NOTICE
The following options are required to use this function.
- Saddle Stitcher SD-513 with Creaser Unit CR-101 mounted
Setting Items
Screen access

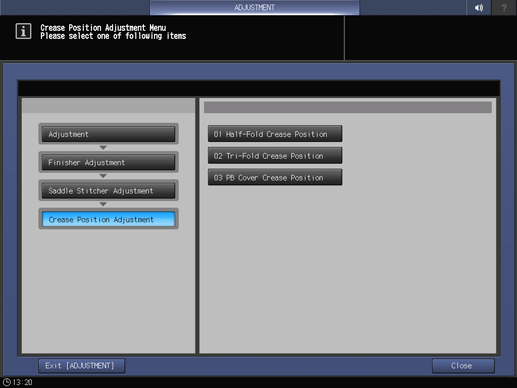

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Crease Position Adjustment]
Setting item | Description |
|---|---|
Adjust the half-fold crease position of Creaser Unit CR-101 mounted on Saddle Stitcher SD-513. | |
Adjust the tri-fold crease position of Creaser Unit CR-101 mounted on Saddle Stitcher SD-513. | |
Adjust the crease position of the perfect binding cover in Creaser Unit CR-101 mounted on Saddle Stitcher SD-513. |
