What Is [Staple]?
Overview
Staple is a function that staples copied paper. Sheets are stapled at 1 or 2 positions. You can set the staple position or interval.
NOTICE
One of the following options is required to use this function.
- Finisher FS-532
- Finisher FS-541
Tips
- The staple pitch between 2 positions can be set depending on the optional devices mounted on this system.
- The corner staple angle can be set depending on the optional devices mounted on this system.
- To staple inside of half-folded paper like a booklet, set [Fold&Staple]. For details, refer to [Fold&Staple].
Setting Items
Screen access

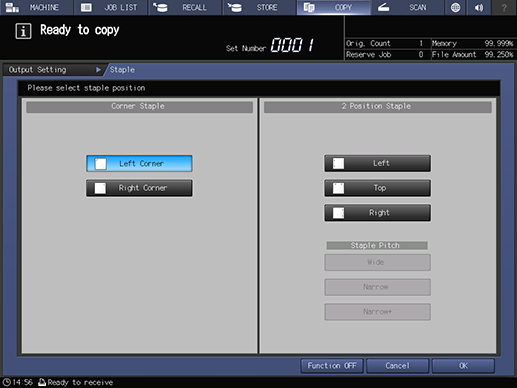

Touch panel - [COPY] - [Output Setting] - [Staple]
Setting item | Description |
|---|---|

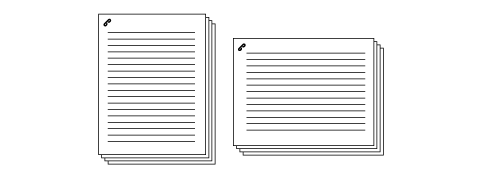

Set the binding position of [Corner Staple]. | |

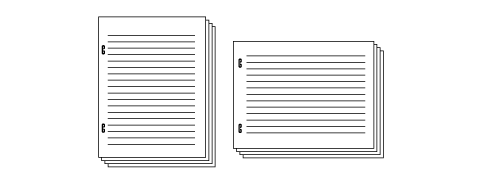

Set the binding position of [2 Position Staple]. | |
Set the pitch for [2 Position Staple]. | |
[Function OFF] | Turns the function off while maintaining the set information. |
