[Combine]
Overview
Combine is a function that combines a multi-page original on a single page. The original can be combined on an even-number basis (2 pages, 4 pages, or 8 pages).
The combine starting position varies depending on the loading orientation of the original.
Tips
- It is convenient to load a multi-page original on the ADF. When the original is loaded on the Original glass, [Separate Scan] is set automatically.
- The automatic magnification (AMS) will work. Auto paper (APS) is cancelled, and the zoom ratio is automatically selected to suit the size of the paper loaded in [Tray1]. The target paper tray can also be changed manually.
- Combine must be performed in the appropriate orientation, so set [Direction] to suit the original orientation. For details, refer to [Direction].
- The combined result is counted as 1 page.

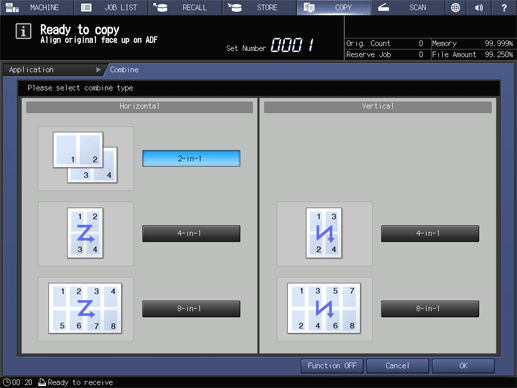

Setting | Number of original pages | Illustration | |
|---|---|---|---|
[Horizontal] | [2-in-1] | 2 |  |
[4-in-1] | 4 |  | |
[8-in-1] | 8 |  | |
[Vertical] | [4-in-1] | 4 |  |
[8-in-1] | 8 |  | |
Setting Items
Setting item | Description | |
|---|---|---|
[Horizontal] | [2-in-1] | Prints 2 original images on a single sheet. |
[4-in-1] | Prints 4 original images on a single sheet. | |
[8-in-1] | Prints 8 original images on a single sheet. | |
[Vertical] | [4-in-1] | Prints 4 original images on a single sheet. |
[8-in-1] | Prints 8 original images on a single sheet. | |
