Set finishing conditions when making a copy.
Select the output tray in the machine front view, and also select the bind direction, output side, and post-processing method.
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||

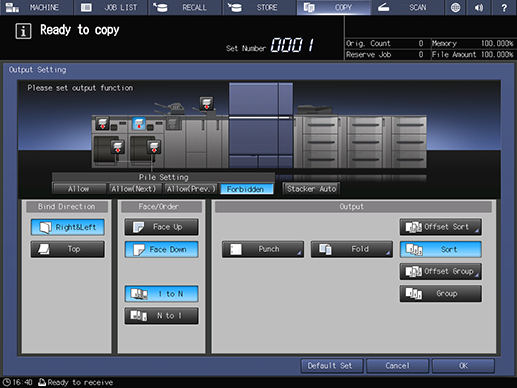

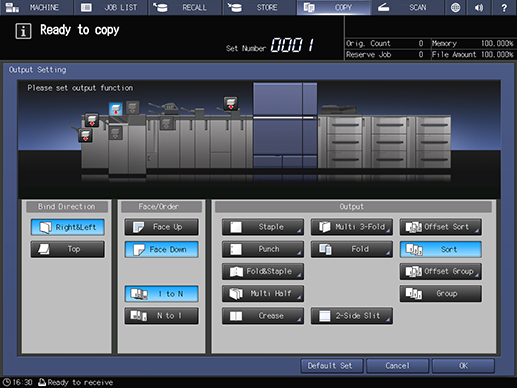

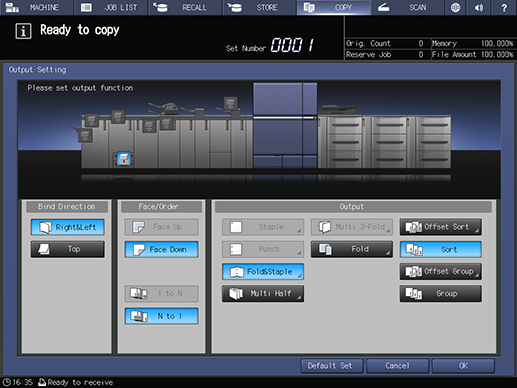

Setting items | Machine front view (Output function) | Displays the currently set output tray and the tray position that can be set to the output destination. The selectable tray varies depending on the mounted optional devices or the functions selected in [Output]. | |
[Bind Direction] | Sets the bind direction for 2-sided printing. For details, refer to [Bind Direction]. | ||
[Face/Order] | Sets the output side orientation and the output order. For details, refer to [Face/Order]. | ||
[Output] | Sets finishing processing such as stapling, punching, or folding. For details, refer to [Output]. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [COPY] - [Output Setting] |
When 2 Large Capacity Stacker LS-507 units are mounted, [Stacker Auto] is displayed.

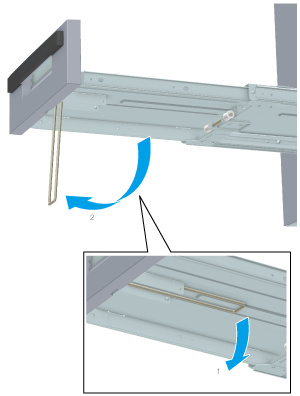

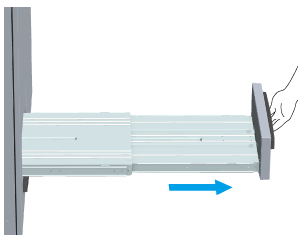

For details about how to remove paper output to Large Capacity Stacker LS-507, refer to What Is Large Capacity Stacker?.
