Set the vertical direction of the original to load on the ADF or Original glass.
When the set direction is different from the preset orientation, the scanning range and copy may produce an unintended result.
To use a function such as 2-sided original, 2-sided copy, Combine, Booklet, or Staple, set the vertical direction of the original to load into the ADF or Original glass. Otherwise, you may not be able to make the desired copy.
[Direction] | Description | |

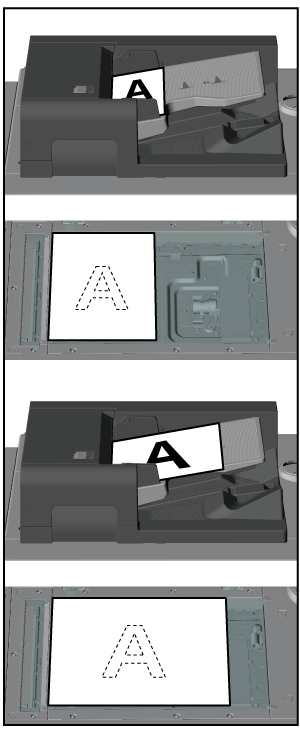

[Normal] | The original is loaded with the top on the far side. | |

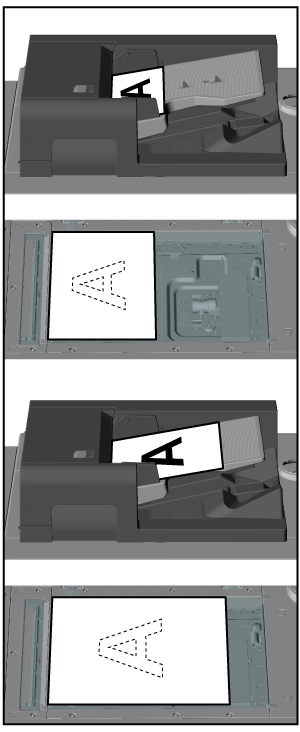

[Left] | The original is loaded with the top on the left side of the ADF or Original glass. | |

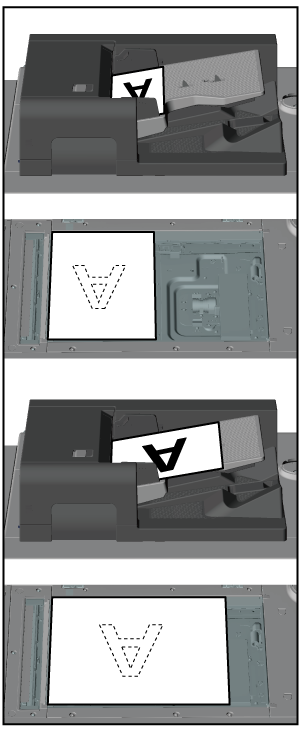

[Upside-Down] | The original is loaded with the top on the near side. | |

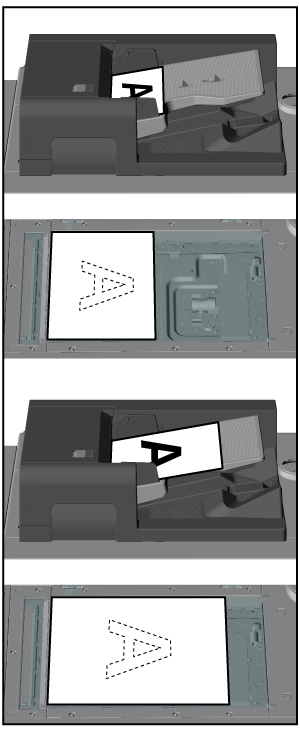

[Right] | The original is loaded with the top on the right side of the ADF or Original glass. |
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | -[Normal] | Selects this item when the original is loaded with the top facing up. | |
[Left] | Selects this item when the original is loaded with the top facing to the left. | ||
[Upside-Down] | Selects this item when the original is loaded with the top facing down. | ||
[Right] | Selects this item when the original is loaded with the top facing to the right. | ||
Remarks | -: Default | ||
Reference | - | ||
Screen access | Touch panel - [STORE] - [Original Setting] | ||
Touch panel - [COPY] - [Original Setting] | |||
Touch panel - [SCAN] - [Scan Settings] - [Original Setting] | |||
Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Copy Initial Setting] - [Original Setting] | |||
Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Scan Initial Setting] - [Original Setting] | |||
Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Store Initial Setting] - [Original Setting] |
