Display the registered device certificates in a list.
You can check the details, register a new certificate, or configure various settings.
To change [S/MIME Comm.Setting] to [OFF], click [OK] on the confirmation screen displayed in the following cases.
Category | Network / Security | ||
Location | Machine | - | |
Printer driver | - | ||
Application | Web Connection | ||
Required options | - | ||
Required items | - | ||
Setting items | [New Registration] | Creates a new certificate. | |
[Default] | Select the default certificate. When [Issuer] is set to [Requesting Certificate], the certificate cannot be selected as default. | ||
[Issuer] | Displays the certificate issuer. | ||
[Subject] | Displays the subject to issue the certificate. | ||
[Validity Period] | Displays the expiration date of the certificate. | ||
[Detail] | Displays the detailed information of the certificate. | ||
[Setting] | Removes, exports, or installs the certificate. | ||
[OK] | Applies the setting. | ||
[Cancel] | Cancels the setting. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Web Connection - [Security] - [PKI Settings] - [Device Certificate Setting] |

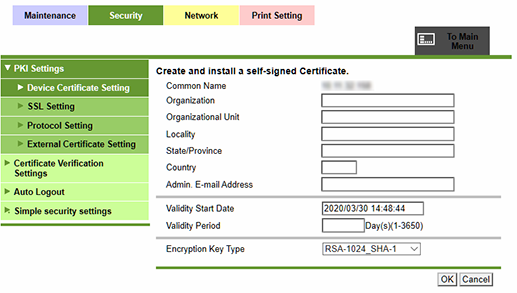

The setting screen is displayed.
[Organization] and [Organizational Unit] can be specified using up to 63 single-byte characters. [Locality] and [State/Province] can be specified using up to 127 characters. For [Country], specify the country code defined in ISO3166 using 2 single-byte characters.
In [Admin. E-mail Address], enter the administrator's email address. The address specified in [Machine Setting] is displayed as the default.
[Validity Start Date] cannot be entered.
[Validity Period] can be specified in the range of 1 to 3650.
Select [Encryption Key Type] from the menu list. Using the ECDSA Cryptography (Elliptic Curve Cryptography) realizes the stronger communication security. Also, encryption is performed using a shorter key length, thereby, enabling a reduction of the network load.

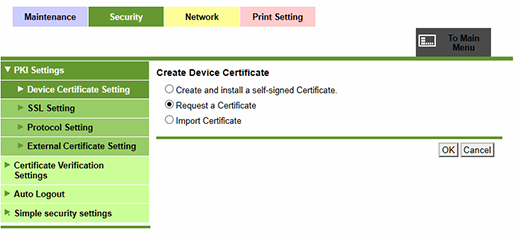

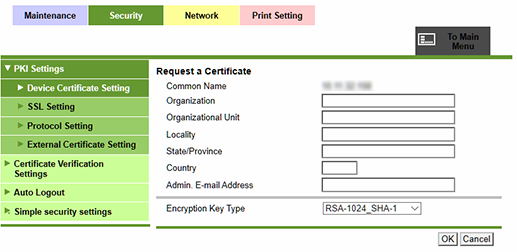

The setting screen is displayed.
[Organization] and [Organizational Unit] can be specified using up to 63 single-byte characters. [Locality] and [State/Province] can be specified using up to 127 characters. For [Country], specify the country code defined in ISO3166 using 2 single-byte characters.
In [Admin. E-mail Address], enter the administrator's email address. The address specified in [Machine Setting] is displayed as the default.
Select [Encryption Key Type] from the menu list. Using the ECDSA Cryptography (Elliptic Curve Cryptography) realizes the stronger communication security. Also, encryption is performed using a shorter key length, thereby, enabling a reduction of the network load.

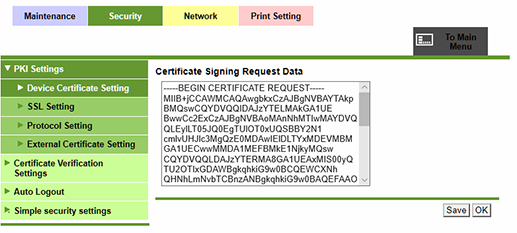

The data is saved in the computer.
After the certificate was issued from the external certificate authority, it must be installed on the Image Controller.
The setting screen is displayed.

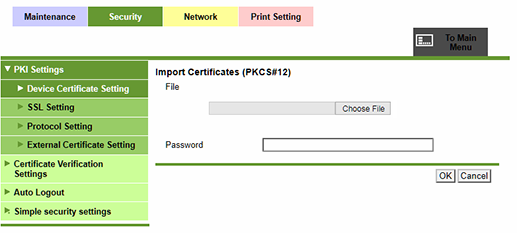

Select the data file of the certificate in the Browse Files... dialog box.
Up to 32 single-byte characters can be entered.
The setting screen is displayed.

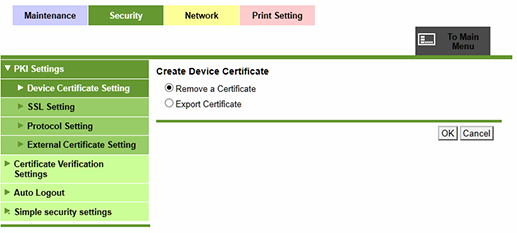

The confirmation screen is displayed.

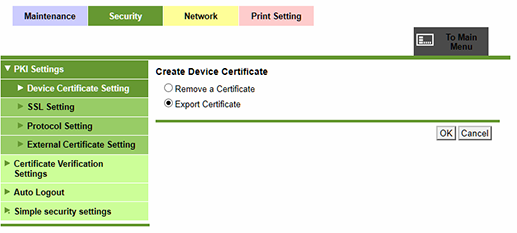

The setting screen is displayed.

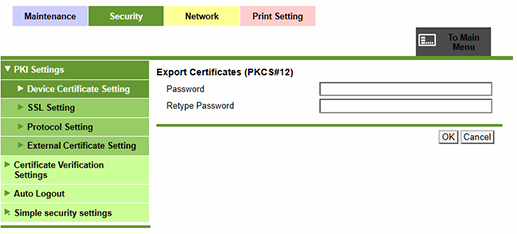

This password can be specified using up to 32 single-byte characters. Also, enter the same password in Retype Password.
The installation screen is displayed.
This function is only selectable when [Requesting Certificate] is set to [Issuer].
