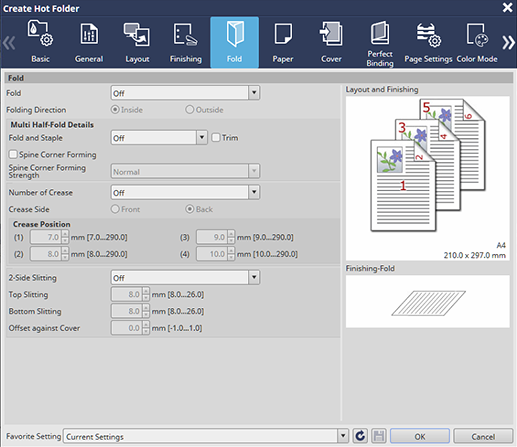

Screen

Configure settings related to print folding.

This function allows you to set the fold type, spine corner forming, and crease.

NOTICE

• The following optional device is required to display the [Fold] screen.
• Saddle Stitcher SD-513 with Creaser Unit CR-101, Folding Unit FD-504, or Trimmer Unit TU-503 is mounted

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - [Create...] - [Fold]

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - Select a hot folder. - [Edit...] - [Fold]

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - Select a hot folder. - [Duplicate...] - [Fold]

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - Double-click a hot folder - [Fold]

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - Right-click a hot folder - [Create...] - [Fold]

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - Right-click a hot folder - [Edit...] - [Fold]

AccurioPro Print Manager - [Configuration] - [Hot Folder Configuration...] - Right-click a hot folder - [Duplicate...] - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - [Create...] - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - Select a hot folder. - [Edit...] - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - Select a hot folder. - [Duplicate...] - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - Double-click a hot folder - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - Right-click a hot folder - [Create...] - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - Right-click a hot folder - [Edit...] - [Fold]

Touch panel - [CNTL] - [Configuration] - [Hot Folder Configuration...] - Right-click a hot folder - [Duplicate...] - [Fold]
