Loading Tab Paper Into the Paper Feeder Unit PF-709
Overview
Load tab paper into the Paper Feeder Unit PF-709.
Example: Insert three sheets of tab paper to three print sets (total 9 sheets)
| How to Stack the Tab Paper | |
---|
| | |
A: Back side B: Front side | A: Side printed or to be printed B: 1st tab paper C: 2nd tab paper D: 3rd tab paper | A: 1st tab paper B: 2nd tab paper C: 3rd tab paper D: 3-copy print set |
Any remaining paper which has not been printed can be automatically ejected from a set of tab paper loaded into the tray.
For example, when loading a single set of 5 papers (5 sheets of tab paper) and only three sheets are used, the remaining sheets will be ejected as shown in the figure below.
| | |
---|
| | Prints three sheets of tab paper | Sheets four and five of the tab paper are ejected automatically |
| |
- There is a possibility that sheets of paper may stick together due to punch holes if tab paper with punch holes is used. To prevent multiple sheets being fed at once, flick through the stack by hand before loading the paper. For details about how to separate paper, refer to Paper Management.
- When loading tab paper into any tray, change the size setting of the tray to tab paper in Paper Setting. For details, refer to [Paper Size].
Procedure
1
Pull out the tray, and open the Feed roller.
Pull out the tray for which tab paper is set.
2
Loosen the Side guide lock knobs of Side guides on the tray.
3

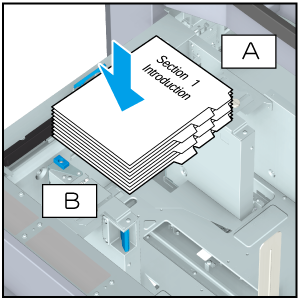

Load the tab paper into the tray.
- Exercise care not to exceed the maximum stack height lines displayed on the tray Side guides when loading the paper.
4
Align the Side guides with the tab paper, rotate the Side guide lock knobs, and lock them.
- Make sure that Side guides and Rear guide plate are firmly placed against the tab paper. If tab paper is distorted because there is a gap of 1 mm / 0.04" or more, or paper is fitted too tightly into the guides, it may cause a paper feeding failure.
5
Align the Rear guide plate with the tab paper.
6
Firmly push the tray all the way in.
