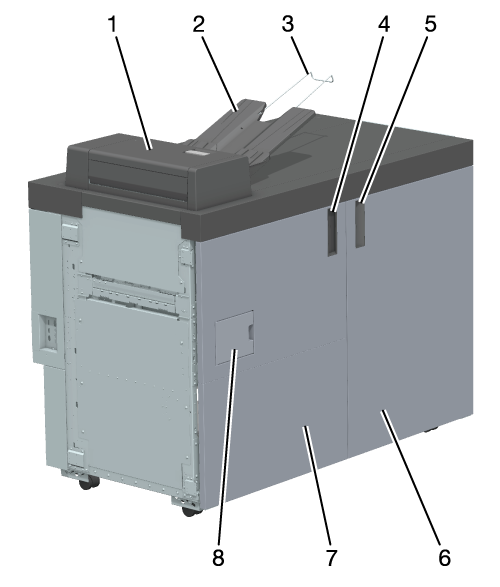

1

Top cover

When clearing a paper jam, open the cover and remove the paper.

2

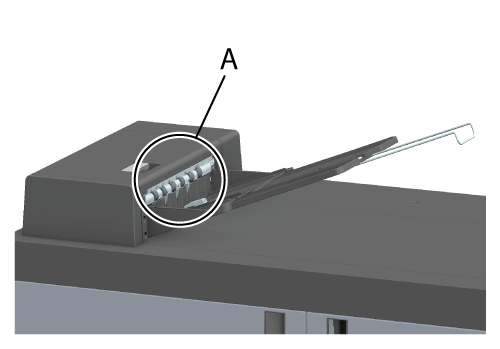

Secondary (sub) tray

Output the trimmed or creased paper or the paper delivered without processing.

3

Secondary (sub) tray extension

Pull out when ejecting large sheets of paper to Secondary (sub) tray.

4

Trimmer unit left side door knob

Used when opening Trimmer unit left side door.

5

Trimmer unit right side door knob

Used when opening Trimmer unit right side door.

6

Trimmer unit right side door

Open this door when clearing a paper jam or replacing an internal option.

7

Trimmer unit left side door

Open this door when clearing a paper jam or replacing an internal option.

8

Card tray door

Open this door when pulling out the Card tray.

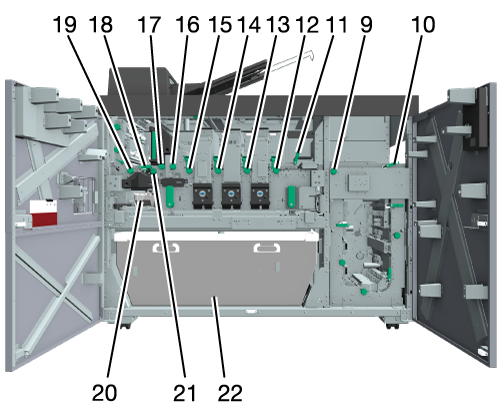

9

Knob [TU2]

When clearing a paper jam, turn the knob to feed the paper through.

10

Lever [TU1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

11

Lever [TU3]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

12

Knob [TU8]

When clearing a paper jam, turn the knob to feed the paper through.

13

Knob [TU10]

When clearing a paper jam, turn the knob to feed the paper through.

14

Knob [TU12]

When clearing a paper jam, turn the knob to feed the paper through.

15

Knob [TU14]

When clearing a paper jam, turn the knob to feed the paper through.

16

Knob [TU15]

When clearing a paper jam, turn the knob to feed the paper through.

17

Knob [TU16]

When clearing a paper jam, turn the knob to feed the paper through.

18

Lever [TU20]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

19

Knob [TU21]

When clearing a paper jam, turn the knob to feed the paper through.

20

Card tray (Supplied with Job Separator JS-507) (Option)

Sheets cut to card size are stacked.

21

Knob [TU17]

When clearing a paper jam, turn the knob to feed the paper through.

22

Trim scrap box

Pull out when discarding trim scrap.

23

Knob [TU25]

When clearing a paper jam, turn the knob to feed the paper through.

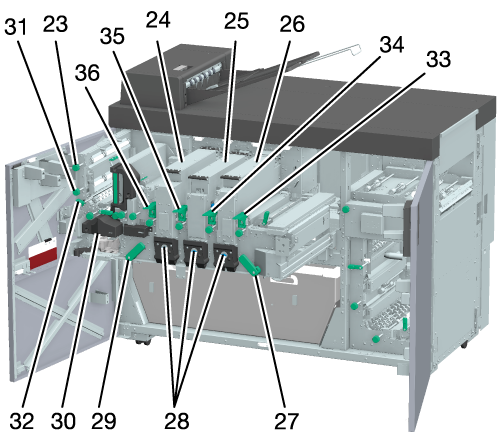

24

Trimmer Unit TU-504/Creaser Unit CR-103/Perforation Unit PE-101 (Optional)

Trimmer Unit TU-504: Slits the gutter horizontally for the paper feed direction.

Creaser Unit CR-103: Attaches up-convex creases (folding lines) on paper.

Perforation Unit PE-101: Attaches a perforation in the paper feed direction.

* Only one of the following optional devices can be mounted on this system.

25

Creaser Unit CR-102/Perforation Unit PE-102 (optional)

Creaser Unit CR-102: Attaches down-convex creases (folding lines) on paper.

Perforation Unit PE-102: Attaches a perforation in the paper crosswise direction.

* Only one of the following optional devices can be mounted on this system.

26

Slitter unit

Trims the top and bottom of paper in the paper feed direction.

27

Lever [TU4]

When clearing a paper jam or replacing an internal option, tilt the lever to the left and pull out the conveyance base.

28

Option fixing bracket

Turn to the left when removing an option.

29

Lever [TU5]

When clearing a paper jam or replacing an internal option, tilt the lever to the right and pull out the conveyance base.

30

Job Separator JS-507 (optional)

Stacks the sheets trimmed to card size, and loads them on the Card tray.

31

Knob [TU23]

When clearing a paper jam, turn the knob to feed the paper through.

32

Lever [TU22]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

33

Lever [TU7]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

34

Lever [TU9]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

35

Lever [TU11]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

36

Lever [TU13]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

37

Lever [TU18]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

38

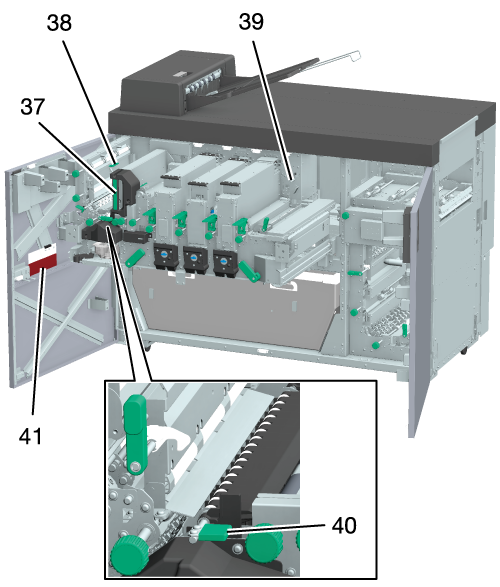

Lever [MK24]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

39

Lock lever [TU6]

Fixes the pulled-out conveyance unit.

40

Lever [JS1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

41

Cleaning plate

Cleans the Line sensor.

42

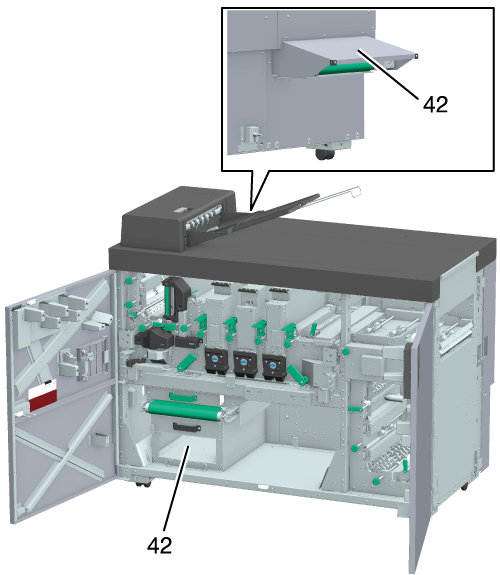

Dust Box MK-765

Discharges cutting scraps generated in the Trimmer Unit TU-510 to the outside of the machine.

Name

Trimmer Unit TU-510

Type

Four-edge trimmer

Function

Through-path

Conveys paper to post-processing device without processing.

Slit

Trims the top and bottom of paper in the paper feed direction.

Cut (CD trimming)

Trims paper in the paper crosswise direction.

Four Edge Trim (Slit + Cut)

Trims the edge parts of paper in the paper feed direction and paper crosswise direction.

Multiple Cutting (Slit + Cut)

Trims a single sheet of wide paper, and divides the paper into 2 sheets of A4 or 8.5 e 11.

2-division mode (Slit + No cut)

Trims a single sheet of wide paper, and divides the paper into 2 sheets of A4 or 8.5 e 11 with slit + no cut. All the output processes (Offset, Staple, Punch, etc.) are available for the half-cut sheets.

Crease (Up Convex) (with Creaser Unit CR-103 mounted)

Attaches up-convex creases (folding lines) in the paper crosswise direction.

Crease (Down Convex) (with Creaser Unit CR-102 mounted)

Attaches down-convex creases (folding lines) in the paper crosswise direction.

Gutter Slit (with Trimmer Unit TU-504 mounted)

Slit the gutter parallel to the paper feed direction.

Perforation Cut (Horizontal) (with Perforation Unit PE-101 mounted)

Attaches a perforation in the paper feed direction. Performing reverse output allows you to transport and output the paper to the optional device in the next stage.

Perforation Cut (Vertical) (with Perforation Unit PE-102 mounted)

Attaches a perforation in the paper crosswise direction. Performing reverse output allows you to transport and output the paper to the optional device in the next stage.

Invert conveyance

Reverses paper, and conveys it to the post-processing device.

Subtray output

Ejects to Secondary (sub) tray.

Stacks the sheets cut to card size (with Job Separator JS-507 mounted).

Stacks the sheets cut to card size in the dedicated tray.

* Each function can be used independently.

Through-path

Paper size

Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, Postcard w^*1, 7.25 e 10.5 w/v, 5.5 e 8.5 w/v, Foolscap^*2, 8K w, 16K w/v

Custom:

Widthwise 95 mm to 330.2 mm, lengthwise 133 mm to 1,300 mm / Widthwise 3.74" to 13", lengthwise 5.24" to 51.18"

Fixed tab paper (back edge of tab during output is not guaranteed)

*1: Only in Japan.

*2: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, 8 e 13 w sizes.

Paper weight

40 g/m² to 450 g/m² / 10 lb Bond to 119 lb Bond

* The paper type is limited to 351 g/m² to 450 g/m² / 94 lb Bond to 119 lb Bond.

Slit

Paper size

Custom:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 19.20"

After slitting, the width must be 120 mm / 4.72" or more.

Others conform to the through-path specifications.

Paper weight

50 g/m² to 400 g/m² / 14 lb Bond to 106 lb Bond

Slit range

50 g/m² to 64 g/m²: 10 mm to 26 mm

65 g/m² to 400 g/m²: 8 mm to 26 mm

Setting units

0.1 mm

Slit independent setting

The slit width at the top or bottom can be set individually. However, the difference in cut size should be within 10 mm / 0.39". Only one-side cutting is not possible.

Cut

Paper size

After CD cutting, the length must be 133 mm / 5.24" or more.

Others conform to the slit specifications.

Paper weight

50 g/m² to 400 g/m² / 14 lb Bond to 106 lb Bond

Cut range

• WY1

  Leading edge cut: 0 mm / 0" or 10 mm to 100 mm / 0.39" to 3.94" (Paper of 13.1 mm / 0.52" or more is cut multiple times.)

  Trailing edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51" (cut once only)

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 13 mm / 0.20" to 0.51"

• WY2

  Leading edge cut: 0 mm / 0" or 8 mm to 100 mm / 0.31" to 3.94" (Paper of 16.1 mm / 0.63" or more is cut multiple times.)

  Trailing edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63" (cut once only)

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 16 mm / 0.20" to 0.63"

Four Edge Trim (Slit + Cut)

Paper size

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 19.20"

Paper weight

50 g/m² to 400 g/m² / 14 lb Bond to 106 lb Bond

Top/bottom slit

0 mm / 0" or 10 mm to 26 mm / 0.39" to 1.02"

Cut range

• WY1

  Leading edge cut: 0 mm / 0" or 10 mm to 100 mm / 0.39" to 3.94" (Paper of 13.1 mm / 0.52" or more is cut multiple times.)

  Trailing edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51" (cut once only)

• WY2

  Leading edge cut: 0 mm / 0" or 8 mm to 100 mm / 0.31" to 3.94" (Paper of 16.1 mm / 0.63" or more is cut multiple times.)

  Trailing edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63" (cut once only)

Multiple Cutting (Slit + Cut) / 2-division mode (Slit + No cut)

Paper size

Multiple Cutting (A4 or 8.5 e 11 in Finishing):

• WY1

  Widthwise 295.4 mm to 330.2 mm, lengthwise 440.0 mm to 470.8 mm / Widthwise 11.63" to 13", lengthwise 17.32" to 18.54"

• WY2

  Widthwise 295.4 mm to 330.2 mm, lengthwise 436.0 mm to 479.8 mm / Widthwise 11.63" to 13", lengthwise 17.17" to 18.89"

2-division mode:

Widthwise 140.0 mm to 330.2 mm, lengthwise 266.0 mm to 487.7 mm / Widthwise 5.51" to 13", lengthwise 10.47" to 19.20"

Paper weight

64 g/m² to 400 g/m² / 17 lb Bond to 106 lb Bond

Top/bottom slit

8 mm to 26 mm / 0.31" to 1.02"

Cut range

• WY1

  Leading edge cut: 10 mm to 13 mm / 0.39" to 0.51" (Paper of 13.1 mm / 0.52" or more is cut multiple times.)

  Trailing edge cut: 10 mm to 13 mm / 0.39" to 0.51" (cut once only)

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 13 mm / 0.20" to 0.51"

• WY2

  Leading edge cut: 8 mm to 16 mm / 0.31" to 0.63" (Paper of 16.1 mm / 0.63" or more is cut multiple times.)

  Trailing edge cut: 8 mm to 16 mm / 0.31" to 0.63" (cut once only)

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 16 mm / 0.20" to 0.63"

Crease (Up Convex / Down Convex)

Paper size

• Crease + Four Edge Trim

Before processing:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 19.20"

• Crease + Four Edge Trim + Gutter Slit

Before processing:

Widthwise 210 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 8.27" to 13", lengthwise 6.02" to 19.20"

Paper weight

• Crease + Four Edge Trim

80 g/m² to 400 g/m² / 21 lb Bond to 106 lb Bond

• Crease + Four Edge Trim + Gutter Slit

WY1: 128 g/m^2*1 to 300 g/m² / 34 lb Bond^*1 to 81 lb Bond

WY2: 128 g/m^2*1 to 400 g/m^2*2 / 34 lb Bond^*1 to 106 lb Bond^*2

*1: Coated paper: 157 g/m² / 42 lb Bond

*2: 2 columns only for 301 g/m² / 82 lb Bond or more

Top/bottom slit

0 mm / 0" or 8 mm to 26 mm / 0.31" to 1.02"

Cut range

Crease + Four Edge Trim

• WY1

  Leading edge cut: 0 mm / 0" or 10 mm to 100 mm / 0.39" to 3.94" (Paper of 13.1 mm / 0.52" or more is cut multiple times.)

  Trailing edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51" (cut once only)

• WY2

  Leading edge cut: 0 mm / 0" or 8 mm to 100 mm / 0.31" to 3.94" (Paper of 16.1 mm / 0.63" or more is cut multiple times.)

  Trailing edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63" (cut once only)

Crease + Four Edge Trim + Gutter Slit

• WY1

  Leading edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51"

  Trailing edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51"

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 13 mm / 0.20" to 0.51"

• WY2

  Leading edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63"

  Trailing edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63"

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 16 mm / 0.20" to 0.63"

* Up to 3 divisions in the transport direction.

Gutter Slit

8 mm / 0.31" (Fixed)

Crease processing method

By 1 sheet

Number of creases

1 to 5

However, the following restrictions apply depending on the crease combination function.

• Fold & Staple/Half-fold: 1 crease

• Tri-Fold: 2 creases

• Quarto-Fold, Gate, Double Gate: 4 creases

• Crease only: 1 to 5

Minimum crease interval

1.0 mm / 0.04"

Crease processable range

• Lead edge of paper / Rear edge of paper

  80 g/m² to 135 g/m² / 21 lb Bond to 36 lb Bond: 30 mm / 1.18" or more from the lead edge of paper

  136 g/m² to 400 g/m² / 37 lb Bond to 106 lb Bond: 10mm / 0.39" or more from the rear edge of paper

• Middle part of paper

  Line interval: 1 mm or / 0.04" or more

Setting units

0.1 mm / 0.004"

1 e 1-3 e 3 Cutting (Gutter Slit)

Paper size

Widthwise 210 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 8.27" to 13", lengthwise 6.02" to 19.20"

Paper weight

• WY1

  128 g/m^2*1 to 300 g/m² / 34 lb Bond^*1 to 81 lb Bond

• WY2

  128 g/m^2*1 to 400 g/m^2*2 / 34 lb Bond^*1 to 106 lb Bond^*2

*1: Coated paper: 157 g/m² / 42 lb Bond

*2: 2 columns only for 301 g/m² / 82 lb Bond or more

Top/bottom slit

0 mm / 0" or 8 mm to 26 mm / 0.31" to 1.02"

Cut range

• WY1

  Leading edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51"

  Trailing edge cut: 0 mm / 0" or 10 mm to 13 mm / 0.39" to 0.51"

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 13 mm / 0.20" to 0.51"

• WY2

  Leading edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63"

  Trailing edge cut: 0 mm / 0" or 8 mm to 16 mm / 0.31" to 0.63"

  Middle cut (width between cut sheets): 0 mm / 0" or 5 mm to 16 mm / 0.20" to 0.63"

* Up to 3 divisions in the transport direction.

* In some cases, there is no middle cut.

Gutter Slit

8 mm / 0.31" (Fixed)

Setting units

0.1 mm / 0.004"

Perforation Cut

Paper size

Widthwise 140 mm to 330.2 mm, lengthwise 133 mm to 487.7 mm / Widthwise 5.51" to 13", lengthwise 5.24" to 19.20"

Paper weight

80 g/m² to 140 g/m² / 21 lb Bond to 38 lb Bond

* Coated paper is limited to 100 g/m² to 160 g/m² / 27 lb Bond to 43 lb Bond.

Number of cuts

Paper feed direction: 0 to 2

Paper crosswise direction: 0 to 5

Perforation cutting available range:

30 mm / 1.18" from leading edge to 30 mm / 1.18" from trailing edge

* The distance between perforation positions must be 120 mm / 4.72" or more.

Setting units

0.1 mm / 0.004"

Invert conveyance

Paper size

Custom:

Widthwise 140 mm to 330.2 mm, lengthwise 153 mm to 487.7 mm / Widthwise 5.51" to 13", lengthwise 6.02" to 19.20"

Paper weight

50 g/m² to 400 g/m² / 13 lb Bond to 106 lb Bond

Subtray output

Paper size

Conforms to the through-path specifications.

Paper weight

Conforms to the through-path specifications.

Tray capacity (Secondary (sub) tray)

100 sheets (80 g/m² / 21 lb Bond, stack height 20 mm / 0.79")

*Stack of 49 g/m² / 13 lb Bond or less is not guaranteed.

Card Cutting (Slit + Cut + Gutter Slit)

Paper size

• WY1

  Widthwise 287 mm to 330.2 mm, lengthwise 370 mm to 457.2 mm / Widthwise 11.30" to 13", lengthwise 14.57" to 18"

• WY2

  Widthwise 210 mm to 330.2 mm, lengthwise 279.4 mm to 470 mm / Widthwise 8.27" to 13", lengthwise 11" to 18.50"

Paper weight

• WY1

  177 g/m² to 300 g/m² / 48 lb Bond to 81 lb Bond

• WY2

  157 g/m² to 400 g/m^2* / 42 lb Bond to 106 lb Bond^*

*: 2 columns only for 301 g/m² / 82 lb Bond or more

Finishing standard size

91 mm e 55 mm / 3.58" e 2.17", 85 mm e 55 mm / 3.35" e 2.17" or 89 mm e 51 mm / 3.5" e 2.01"

Number of finishing sheets per sheet

21 sheets (when trimmed in 3 columns e 7 rows)

Top/bottom slit

8 mm to 26 mm / 0.31" to 1.02"

Leading/Trailing edge cut

• WY1

  10 mm to 13 mm / 0.39" to 0.51"

• WY2

  8 mm to 16 mm / 0.31" to 0.63"

Middle Cut

• WY1

  0 mm / 0" or 5 mm to 13 mm / 0.20" to 0.51"

• WY2

  0 mm / 0" or 5 mm to 16 mm / 0.20" to 0.63"

Gutter Slit

8 mm (Fixed)

Tray capacity (Card tray of Job Separator JS-507)

504 sheets (168 sheets e 3 columns, 177 g/m² to 256 g/m² / 48 lb Bond to 68 lb Bond)

420 Sheets (140 sheets e 3 columns, 257 g/m² to 300 g/m² / 69 lb Bond to 81 lb Bond)

Dimensions

1,360 mm (W) e 747 mm (D) e 1,151 mm^* (H) / 53.54" (W) e 29.41" (D) e 45.31"^* (H)

*: Maximum height, excluding the tray part. The top height is 1,020 mm / 40.16".

Weight

Approx. 272 kg / 599.66 lb

Maximum mass including option: Approx. 328 kg / 723.12 lb

Power

Japan and Inch area: AC 100 V to 127 V, 50/60 Hz (supplied through the power cord.)

Metric area: AC 220 V to 240 V, 50/60 Hz (supplied through the power cord.)

DC 24 V, 5 V (partially supplied from the front stage)

Maximum power consumption

900 W or less

1

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.43"

Simplex

None

Secondary (sub) tray of Trimmer Unit TU-510

Face Up

2

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.44"

Duplex

None

Secondary (sub) tray of Trimmer Unit TU-510

Face Down

3

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.45"

Duplex

Available

Secondary (sub) tray of Trimmer Unit TU-510

Face Down

4

Lengthwise 487.8 mm to 900 mm / 19.2" to 35.46"

Duplex

Available

• Finisher FS-532, Finisher FS-541, or Main tray of Output Tray OT-512

• Secondary (sub) tray other than Trimmer Unit TU-510

Face Down

5

Lengthwise: 900 mm / 35.46" or more

Simplex

None

Secondary (sub) tray of Trimmer Unit TU-510

Face Up
