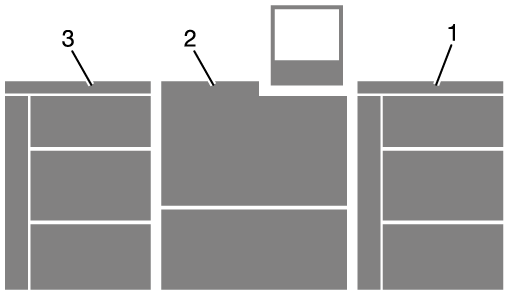

No. | Name | Description |
---|---|---|
1 | Paper Feeder Unit PF-710 | Load the paper to feed it to the machine. |
2 | Machine | This is the engine section that prints on paper. |
3 | Large Capacity Post Inserter PI-PFU | Load unprinted covers or insertion paper to feed and convey them. |

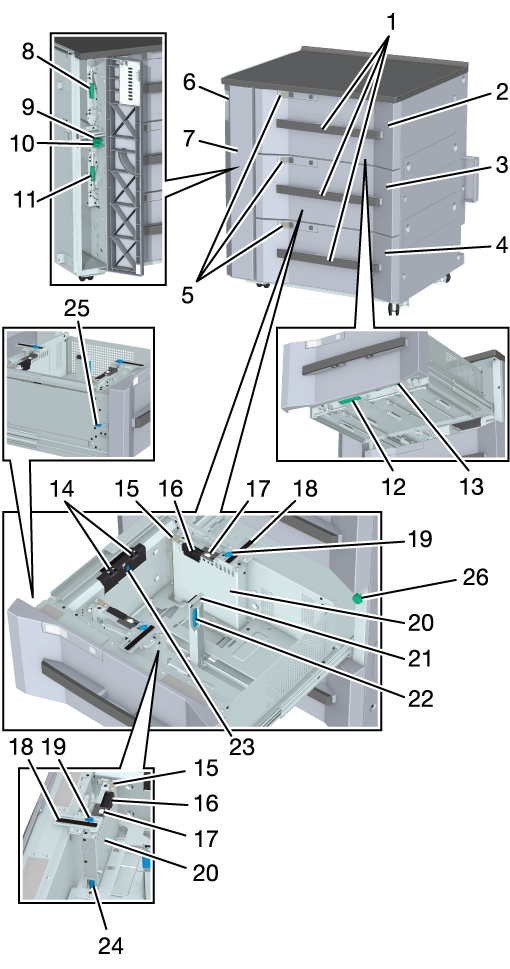

No. | Name | Description |
---|---|---|
1 | Tray handle | Hold and pull the handle when pulling out the tray. |
2 | Upper tray (Tray 3) (the 2nd from Tray 6 and 3rd from Tray 9) | Stores 1,300 sheets (80 g/m2 / 21 lb Bond). |
3 | Middle tray (Tray 4) (the 2nd from Tray 7 and 3rd from Tray 10) | Stores 1,850 sheets (80 g/m2 / 21 lb Bond). |
4 | Lower tray (Tray 5) (the 2nd from Tray 8 and 3rd from Tray 11) | Stores 1,850 sheets (80 g/m2 / 21 lb Bond). |
5 | Air nozzle confirmation window | When confirming the paper feedability by air blowing, open this. |
6 | Tray left side door knob | Used when opening Tray left side door. |
7 | Tray left side door | Open when opening Right side door to handle paper jams, and when clearing paper feeder unit tray paper jams. |
8 | Upper tray vertical conveyance door | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
9 | Lever [PF2] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
10 | Lever [PF1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
11 | Lower tray vertical conveyance door | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
12 | Horizontal conveyance cover lever | When clearing a paper jam, open the guide, and remove the paper. |
13 | Horizontal conveyance knob | Turn this knob to output the jammed paper to the horizontal conveyance side. |
14 | Edge air nozzle | Blows air to separate the paper. |
15 | Small size guides (2 locations) | Open both sides toward the inside when loading paper with a width of less than 139 mm / 5.47". Only used for the Paper Feeder Unit PF-710. |
16 | Side air nozzle | Blows air for the paper to float on in order to prevent multiple sheets of paper being fed in at the same time. |
17 | Paper holding plate fixing lever (2 locations) | When using Small size guides, slide to the left to lock the paper holding plate. Only used for the Paper Feeder Unit PF-710. |
18 | Paper size indicator | Check the position of Side guides using the scale. |
19 | Side guide lock knobs (2 locations) | Turn when moving or fixing Side guides in place. |
20 | Side guides (2 locations) | It is run alongside both sides of the set paper. |
21 | Rear guide plate | It is run alongside the back side of the set paper. |
22 | Rear edge guide lock release lever | When moving Rear guide plate, press the lever on the left side to unlock. |
23 | Upper limit sensor position adjustment lever | When the lever is lifted, feed performance may drop, so do not move (slide) from the state when fixed at bottom side. |
24 | Side guide lock release lever | When moving Side guides, press the lever on the back side to unlock. |
25 | Bottom plate fixing knob | Turn clockwise while sliding forward, and adjust the bottom tray in the highest position. |
26 | Knob [PF3] | Turn this knob to output the jammed paper to the horizontal conveyance side. Only used for the Large Capacity Post Inserter PI-PFU. |

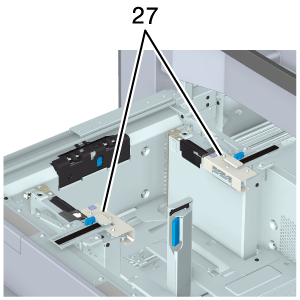

27 | Side auxiliary guides (2 locations) | When loading tab paper, attach to Side guides. |
Name | Paper Feeder Unit PF-710 |
Type | 3-level feed tray (Enables the max. triple connection and the double connection with Paper Feeder Unit PF-709) |
Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w, A4 w/v, B5 w/v, A5 v, Postcard w*1, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 8 e 13 w, 8K w, 16K w/v Custom: Widthwise 95 mm to 324 mm, lengthwise 133 mm to 483 mm / Widthwise 3.74" to 12.76", lengthwise 5.24" to 19.02" Tab paper*2: A4T v, 8.5 e 11T v *1: Only in Japan. *2: When loading tab paper, attach Side auxiliary guides. Series B paper is set to JIS or ISO standard size by default. This setting differs depending on the shipping region. For JIS/ISO switching, contact your service representative. Detectable fixed sizes can be changed. Furthermore, use of K size can be selected on the [Utility] screen, and K size can be detected. For details, refer to [K Size]. When paper is less than 139 mm / 5.47" widthwise, use Small size guides. |
Paper type | Plain, Fine, Coated*1, PrePrinted*1, Book/News*2, Plain-rough*2, Blank Insert, Postcard*3, Label paper*4, Textured*5, Transparency*6, Tab paper*7, Envelope*8 *1: It is recommended that Dehumidifier Heater HT-506 is used in high temperature environments. *2: 216 g/m2 / 57 lb Bond or less recommended. *3: Only in Japan. *4: 216 g/m2 / 57 lb Bond or less recommended, Middle tray only, Single side only *5: 75 g/m2 to 216 g/m2 / 20 lb Bond to 57 lb Bond recommended. *6: Middle tray only, Single side only Image quality and scratches are not guaranteed. *7: Setting direction specified, Single side only. *8: 1st Middle tray only. Side auxiliary guides is required for envelopes of widthwise 100 mm to 139 mm / widthwise 3.94" to 5.47. |
Paper weight | 40 g/m2 to 350 g/m2 / 10 lb Bond to 93 lb Bond * It is recommended that the grain direction is parallel to the feeding direction for paper of up to 49 g/m2 / 13 lb Bond. * It is recommended that the grain direction is orthogonal to the feeding direction for paper of up to 217 g/m2 / 58 lb Bond and also that the 1st unit Middle tray is used. |
Feed capacity | Upper tray: 1,300 sheets (80 g/m2 / 21 lb Bond, stack height 152.8 mm / 6.02") Middle tray / Lower tray: 1,850 sheets (80 g/m2 / 21 lb Bond, stack height 203.1 mm / 8.00") |
Dimensions | 887 mm (W) e 782 mm (D) e 1,038 mm (H) / 34.92" (W) e 30.79" (D) e 40.87" (H) |
Weight | Approx. 200 kg / 440.93 lb |
Power* | In Japan: AC 100 V / 12A, 50/60 Hz Metric area: AC 220 V to 240 V / 5.2A, 50/60 Hz Inch area: AC 120 V to 127 V / 10A, 50/60 Hz |
Maximum power consumption* | 1,200 W or less |
*: Including the Dehumidifier Heater HT-506 option.
Name | Large Capacity Post Inserter PI-PFU |
Type | 3-level feed tray (PI-PFU1 to PI-PFU3) |
Function | Feeds unprinted covers and insertion paper. |
Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 v, A4 w/v, B5 w/v, A5 v, Postcard w*1, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 8 e 13 w, 8K w, 16K w/v Custom: Widthwise 139 mm to 324 mm, lengthwise 133 mm to 483 mm / Widthwise 5.47" to 12.76", lengthwise 5.24" to 19.02" Tab paper*2: A4T v, 8.5 e 11T v *1: Only in Japan. *2: When loading tab paper, attach Side auxiliary guides. Series B paper is set to JIS or ISO standard size by default. This setting differs depending on the shipping region. For JIS/ISO switching, contact your service representative. Detectable fixed sizes can be changed. Furthermore, use of K size can be selected on the [Utility] screen, and K size can be detected. For details, refer to [K Size]. |
Paper type | Plain, Fine, Coated*1, PrePrinted*1, Book/News*2, Plain-rough*2, Blank Insert, Label paper*3, Textured*4, Transparency*5, Tab paper*6 *1: It is recommended that Dehumidifier Heater HT-506 is used in high temperature environments. *2: 216 g/m2 / 57 lb Bond or less recommended. *3: 216 g/m2 / 57 lb Bond or less recommended, Middle tray only, Single side only *4: 75 g/m2 to 216 g/m2 / 20 lb Bond to 57 lb Bond recommended. *5: Middle tray only, Single side only Image quality and scratches are not guaranteed. *6: Setting direction specified, Single side only. |
Paper weight | 40 g/m2 to 350 g/m2 / 10 lb Bond to 93 lb Bond * It is recommended that the grain direction is parallel to the feeding direction for paper of up to 49 g/m2 / 13 lb Bond. * It is recommended that the grain direction is orthogonal to the feeding direction for paper of up to 217 g/m2 / 58 lb Bond. |
Number of stored sheets | Upper tray: 1,300 sheets (80 g/m2 / 21 lb Bond, stack height 152.8 mm / 6.02") Middle tray / Lower tray: 1,850 sheets (80 g/m2 / 21 lb Bond, stack height 203.1 mm / 8.00") |
Dimensions | 887 mm (W) e 782 mm (D) e 1,038 mm (H) / 34.92" (W) e 30.79" (D) e 40.87" (H) |
Weight | Approx. 209 kg / 460.77 lb (Including Feed Adjuster FA-503: 9 kg / 19.84 lb) |
Power* | In Japan: AC 100 V / 12A, 50/60 Hz Metric area: AC 220 V to 240 V / 5.2A, 50/60 Hz Inch area: AC 120 V to 127 V / 10A, 50/60 Hz |
Maximum power consumption* | Up to 36 W higher than Paper Feeder Unit PF-710 |
*: Including the Dehumidifier Heater HT-506 option.
