Completed Job Image Report and Out of Range Image Report
Overview

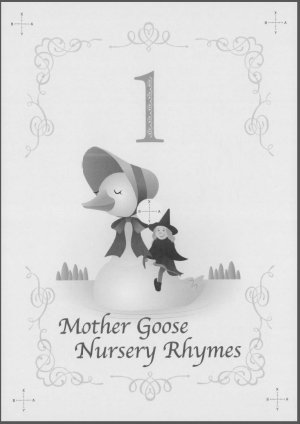

This page shows the print result image scanned by Intelligent Quality Optimizer IQ-501. This is displayed on the 3rd page of the PDF file for the completed job image report and the out of range image report.
Completed job image report: Report of printouts that satisfy the inspection level. In that report, you can check the image scanned by Intelligent Quality Optimizer IQ-501 and judged to be in-standard.
Out of range image report: Report of printouts that did not satisfy the inspection level. In that report, you can check the image scanned by Intelligent Quality Optimizer IQ-501 and judged to be out of range. Annotations are added to the PDF file at the detection points. In the annotation, the detection type, detection level, coordinates, and others are described. Also, [Bookmarks] displays the number of detections and page information.
Bookmark for Out of Range Image Report
The bookmark for the out of range image report shows the number of errors detected for the job and page information.
Item | Description |
|---|---|
[Set(n)] | Number of the set in which an out of range image was detected. n: nth set |
[Page(n)] | Number of the page on which an out of range image was detected. n: nth page Click this to open the bookmark; the detected items are displayed as follows. |
[Stain Total] | Total number of detected stains. Up to 20 items are displayed. |
[Stain(XXX) Level(n)] | Displays the stain level (n). For details about the level, refer to Setting Procedure ([Automatic Inspection Level Setting]). XXX: Serial No. |
[Omission Total] | Total number of omissions. Up to 20 items are displayed. |
[Omission(XXX) Level(n)] | Displays the omission level (n). XXX: Serial No. |
[Barcode Total(n)] | Displays the number (n) of bar code or QR code errors. |
[Blank(m)] | Displays the area in which the bar code or QR code was blank. m: Area No. |
[Decode Error(m)] | Displays the area in which bar code or QR code decoding failed. m: Area No. |
[1st/2nd Mismatch(m)] | Displays the area in which front/back mismatching of bar code or QR code occurred. m: Area No. |
[Sequential Check Mismatch(m)] | Displays the area in which a sequential error of a bar code or QR code occurred. m: Area No. |
[Serial No.Total(n)] | Displays the number (n) of number errors. |
[Blank(m)] | Displays the area in which the number was blank. m: Area No. |
[Decode Error(m)] | Displays the area in which number decoding failed. m: Area No. |
[1st/2nd Mismatch(m)] | Displays the area in which front/back mismatching of number occurred. m: Area No. |
[Sequential Check Mismatch(m)] | Displays the area in which a sequential error of a number occurred. m: Area No. |
[Alignment error] | Displayed when alignment with the reference image failed. |
[csv read error] | Displayed when report creation failed. |
[Too Many Stains] | Displayed when many stains were detected. |

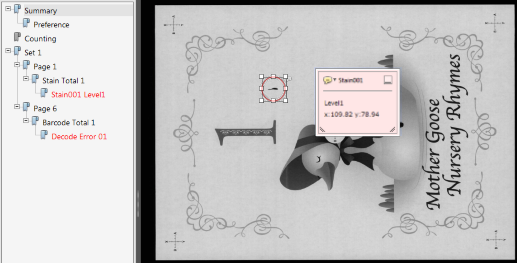

Annotation for Out of Range Image Report
The problem part is enclosed by a frame, and the detected content is displayed as an annotation as follows.
Item | Description |
|---|---|
[Stain(XXX)] | Displays the detected stain. XXX: Serial No. |
[Omission(XXX)] | Displays the detected omission. XXX: Serial No. |
[Blank(m)] | Displays the area in which the bar code, QR code, or number was blank. m: Area No. |
[Decode Error(m)] | Displays the area in which bar code, QR code, or number decoding failed. m: Area No. |
[1st/2nd Mismatch(m)] | Displays the area in which front/back mismatching occurred in bar code, QR code, or number. m: Area No. |
[Sequential Check Mismatch(m)] | Displays the area in which a sequential error of bar code, QR code, or number occurred. m: Area No. |
[Level(X)] | Displays the spoilage detection level. X: Level |
[x:XXX.XX] [y:XXX.XX] | Displays the stain position based on the upper left of the image. x: Lateral position, y: Vertical position XXX.XX: Coordinates |
in the upper-right of a page, it turns into
and is registered as a bookmark.
