Changing a Display Item for Out of Range Image Report
Overview
Display items can be changed by opening the PDF file of the downloaded out of range image report using Adobe Acrobat.
This function displays stains or omissions judged to be in the allowable range as well as the specified [Barcode Area] and [Serial No. Area], and also allows you to change the color to display the inspection result.
NOTICE
The following setting is required to use this function.
- Enable [Enable Acrobat Javascript] in [Preferences] of Adobe Acrobat.
Reference
- For details about how to set or use Adobe Acrobat, refer to Help of Adobe Acrobat.
Select [Preference] or "

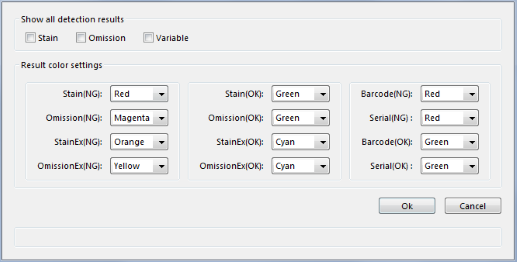

" from [Bookmarks] of Adobe Acrobat; a window is displayed. Set the required items, and click [OK].
The displayed items vary depending on the automatic inspection presetting.
The below screens may differ from the actual ones depending on the usage environment or version.
Item name | Description | |
|---|---|---|
[Show all detection results] | [Stain] | Select these check boxes to enclose stains or omissions judged to be in the allowable range in a frame. |
[Omission] | ||
[Variable] | Select this check box to display [Barcode Area] or [Serial No. Area]. | |
[RealTimeCollation]* | Select this check box to display the realtime collation results without problems. | |
[Result color settings] | [Stain(NG)] | Sets the color of the frame to enclose image failures such as stains or omissions. Click this to select a color in the menu list that is displayed. |
[Stain(OK)] | ||
[Omission(NG)] | ||
[Omission(OK)] | ||
[StainEx(NG)] | ||
[StainEx(OK)] | ||
[OmissionEx(NG)] | ||
[OmissionEx(OK)] | ||
[Blank] | Sets the color of the frame to enclose a number or bar code reading error. Click this to select a color in the menu list that is displayed. | |
[Decode] | ||
[Numbering] | ||
[Barcode(NG)] | ||
[Serial(NG)] | ||
[Barcode(OK)] | ||
[Serial(OK)] | ||
[Comparison(NG)] | ||
[Comparison(OK)] | ||
[RealTimeCollation(NG)]* | Sets the color of the frame to enclose the realtime collation results. Click this to select a color in the menu list that is displayed. | |
[RealTimeCollation(OK)]* | ||
*: Displayed when Variable Data Inspection Kit UK-312 is mounted.
in the upper-right of a page, it turns into
and is registered as a bookmark.
