Perform adjustments when the entire image is rotated clockwise or counterclockwise or a diagonal skew is detected.
The compensation value can be adjusted manually.
Category | Copy / Scan | |||
Location | Machine | Touch Panel | ||
Printer driver | - | |||
Application | - | |||
Required options | - | |||
Required items | - | |||
Setting items | [Front] / [Back] | [Rotate] | Rotates the image counterclockwise when the positive value is entered, and clockwise when the negative value is entered. Range: -1.00 to +1.00 | |
[Skew] | Lowers the left corner when the positive value is entered, and the right corner when the negative value is entered. This adjusts a distortion in the diagonal direction of the image. Range: -1.00 to +1.00 | |||
[Trapezoid(CD)] | Entering a positive value shortens the right side of a trapezoid (CD), and lengthens the left side. Entering a negative value lengthens the right side of a trapezoid (CD), and shortens the left side. This adjusts a distortion between the left and right sides of an image. | |||
[Trapezoid(FD)] | Entering a positive value shortens the on the top side of a trapezoid (FD), and lengthens the bottom side. Entering a negative value lengthens the on the top side of a trapezoid (FD), and shortens the bottom side. This adjusts a distortion between the top and bottom sides of an image. | |||
[Curve] | Entering a positive value lowers the part curved upward. Entering a negative value raises the part curved downward. This adjusts a upward or downward curve of an image. | |||
[Peak of Curve] | Entering a positive value raises the part curved partially to the bottom right side. Entering a negative value raises the part curved partially to the bottom left side. This adjusts a curve to the bottom left/right side of an image. | |||
[Chart Adjustment] | Adjusts the positions of the front and back sides based on the numeric values displayed in the output chart. For details, refer to [Chart Adjustment] ([Deformation]). | |||
[Reset] | Resets the [Front] and [Back] settings. | |||
Keypad | Used to enter numeric values. | |||
[Clear] | Returns the entered numeric value to "0". | |||
Remarks | - | |||
Reference | - | |||
Screen access | Touch panel - [MACHINE] - [Both Sides] - [Deformation] | |||
Touch panel - [MACHINE] - [Paper Setting] - [New Setting] - [Both Sides Adj.] - [Deformation] | ||||
Touch panel - [MACHINE] - [Paper Setting] - [Change Set] - [Both Sides Adj.] - [Deformation] | ||||
Touch panel - [MACHINE] - [Reg./Del.PaperSet.] - [Add/Edit] - [Both Sides Adj.] - [Deformation] |
Prepare a test chart to check a misalignment between the front and back sides before adjustment. For convenient use, set a reference point for measuring the skew on a test chart.
Compare the test chart with the chart output after adjustment, and check the distortion adjustment amount.
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.

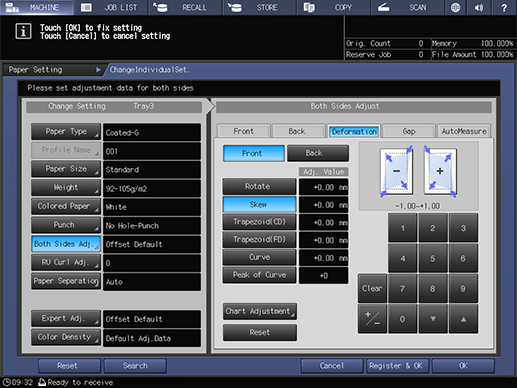

Adjustment range: [-1.00~+1.00]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-1.00~+1.00]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-0.20~+0.20]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.

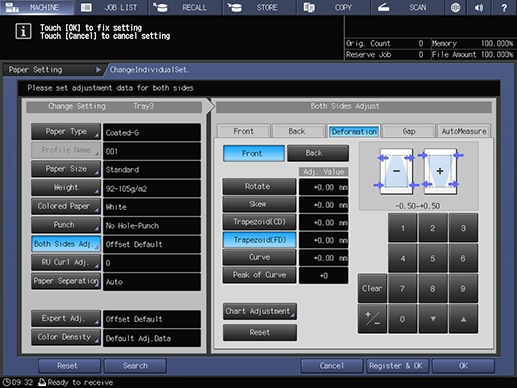

Adjustment range: [-0.50~+0.50]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-0.50~+0.50]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.

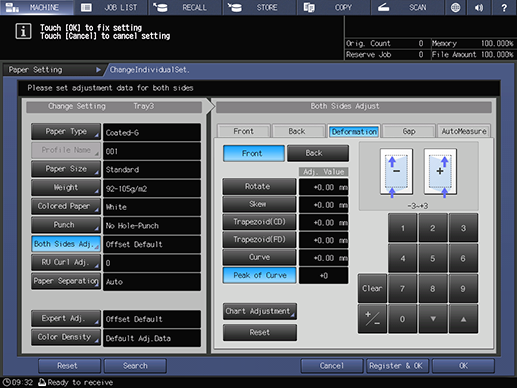

Adjustment range: [-3~+3]
Compare the output chart with a chart for adjustments. Check that the distortion on the front side is improved.
Repeat steps 2 to 13 until the desired result is obtained.
Prepare a test chart to check a misalignment between the front and back sides before adjustment. For convenient use, set a reference point for measuring the skew on a test chart.
Compare the test chart with the chart output after adjustment, and check the distortion adjustment amount.
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-1.00~+1.00]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-1.00~+1.00]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.

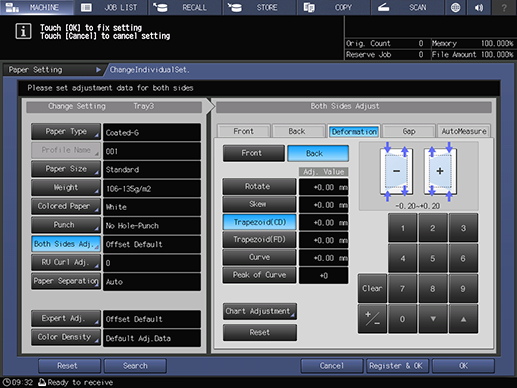

Adjustment range: [-0.20~+0.20]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-0.50~+0.50]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-0.50~+0.50]
Use [+ / -] to select the positive or negative value.
Enter a positive or negative adjustment value to suit a distortion on the print image.
Adjustment range: [-3~+3]
Compare the output chart with a chart for adjustments. Check that the distortion on the back side is improved.
Repeat steps 2 to 13 until the desired result is obtained.
