Adjust the magnification and position of the image to print on the front side.
Category | Copy / Scan | |||
Location | Machine | Touch Panel | ||
Printer driver | - | |||
Application | - | |||
Required options | - | |||
Required items | - | |||
Setting items | [Zoom] | [Vertical] | Adjusts the printing magnification in the crosswise direction. Range: -1.00 to +1.00 | |
[Horizontal] | Adjusts the printing magnification in the paper feed direction. Range: -1.00 to +1.00 | |||
[Image Shift] | [Up/Down] | Adjusts the up/down position of an image. Range: -10.0 to +10.0 | ||
[Right/Left] | Adjusts the right/left position of an image. Range: -3.0 to +3.0 | |||
[Chart Adjustment] | Adjusts the positions of the front and back sides based on the numeric values displayed in the output chart. For details, refer to [Chart Adjustment] ([Front] / [Back]). | |||
[Reset (Front/Back)] | Resets the [Front] and [Back] settings. | |||
Keypad | Used to enter numeric values. | |||
[Clear] | Returns the entered numeric value to "0". | |||
Remarks | - | |||
Reference | - | |||
Screen access | Touch panel - [MACHINE] - [Both Sides] - [Front] | |||
Touch panel - [MACHINE] - [Paper Setting] - [New Setting] - [Both Sides Adj.] - [Front] | ||||
Touch panel - [MACHINE] - [Paper Setting] - [Change Set] - [Both Sides Adj.] - [Front] | ||||
Touch panel - [MACHINE] - [Reg./Del.PaperSet.] - [Add/Edit] - [Both Sides Adj.] - [Front] |
Prepare a test chart to check a misalignment between the front and back sides before adjustment. For convenient use, set a reference point for measuring the zoom ratio or position on a test chart.
Compare the test chart with the chart output after adjustment, and check the zoom ratio and misalignment.
Use [+ / -] to select the positive or negative value.
To enlarge the print image, enter a positive value, and to reduce it, enter a negative value.
Adjustment range: [-1.00~+1.00]

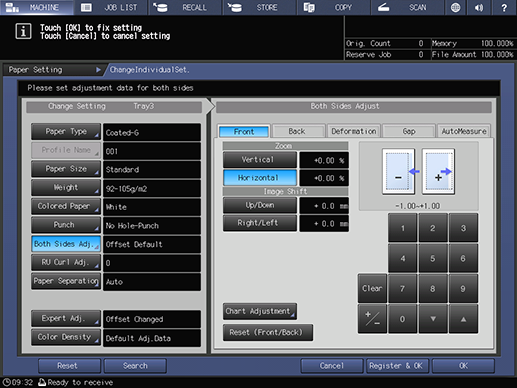

Use [+ / -] to select the positive or negative value.
To enlarge the print image, enter a positive value, and to reduce it, enter a negative value.
Adjustment range: [-1.00~+1.00]
Use [+ / -] to select the positive or negative value.
To move up the print image, enter a positive value, and to move it down, enter a negative value.
Adjustment range: [-10.0~+10.0]

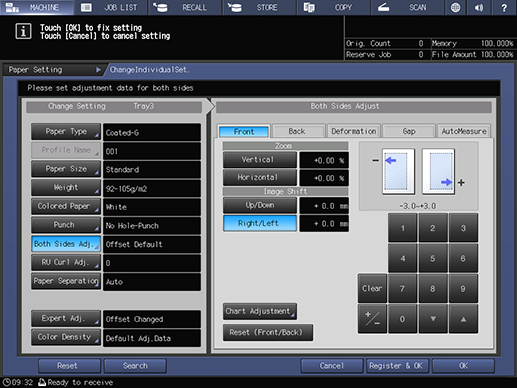

Use [+ / -] to select the positive or negative value.
To move the print image to the right, enter a positive value, and to move it to the left, enter a negative value.
Adjustment range: [-3.0~+3.0]
Compare the output chart with a chart for adjustments. Check that the zoom ratio and misalignment on the front side is improved.
Repeat steps 2 to 9 until the desired result is obtained.
