[Rear Edge Side Air Level Set.]
Overview
Set the air level (air level in the rear edge side) from the Side air nozzle in the Side guides (right) of the tray.
The air level can be adjusted manually depending on the paper type or working environment. The air level can be set in 10 levels, from 0 to 9.
NOTICE
- The following setting is required to use this function.
- Set [Paper Separation] to [Manual].
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Paper Feeder Unit PF-812 | ||
Required items | - | ||
Setting items | [Weak] | Weakens the rear edge side air level each time this key is pressed. | |
[Strong] | Strengthens the rear edge side air level in the side each time this key is pressed. | ||
[OFF] | Turns off the rear edge side air level. | ||
Remarks | - | ||
Reference | - | ||

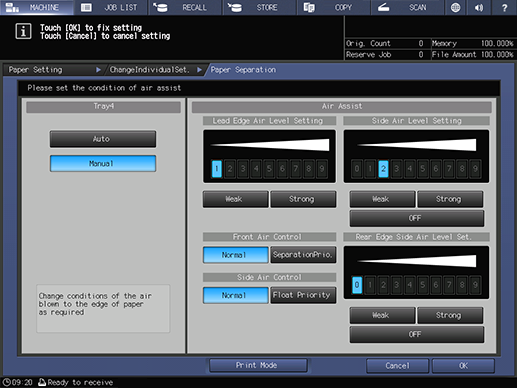

Screen access | Touch panel - [MACHINE] - [Paper Setting] - [Change Set] - [Paper Separation] | ||
Touch panel - [MACHINE] - [Paper Setting] - [New Setting] - [Paper Separation] | |||
Procedure
1
Press [Weak] or [Strong], and set the side air level.
2
Press [OK].
