Set scanning conditions.
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [List] | Displays the selected destination, file name of scan data to be sent, and title and text of the email to be sent. | |
[Original Setting] | Sets conditions for the original. For details, refer to [Original Setting]. Some settings are displayed with an icon directly under the key. | ||
[Separate Scan] | Divides scanning of the original into multiple scans. The scanned image information is temporarily stored in memory, and finishes by sending the data collectively. | ||
[Direction] | Sets the orientation of the original. For details, refer to [Direction]. | ||
[Quality Adj.] | Sets image quality conditions. Refer to [Quality Adj.]. The [Quality Adj.] setting is displayed directly under the key. When the following keys are displayed, [Scan Density] can also be set using those keys. [Lighter]/[Darker]/[Normal]: Sets the density in the range of -4 to +4, using the scanning density default (0) as [Normal]. | ||
[Zoom] | Sets the zoom ratio for scanning. For details, refer to [Zoom]. The zoom ratio is displayed with a numeric value directly under the key. The zoom ratio can also be set using the following keys that are displayed under the numeric value. [-]/[+]: Sets the zoom ratio with a numeric value. | ||
[Application] | Sets application functions. For details, refer to [Application]. Up to 2 setting items are displayed directly under the key. | ||
[Color] | Sets the color mode. For details, refer to [Color]. | ||
[Color Space] | Select the type of RGB color space. For details, refer to [Color Space]. | ||
[Scan Size] | Sets the scanning size. For details, refer to [Scan Size]. | ||
[Resolution(dpi)] | Select the scanning resolution. For details, refer to [Resolution(dpi)]. | ||
[Simplex/Duplex] | Sets simplex and duplex conditions for the original. For details, refer to [Simplex/Duplex]. | ||
[File Type] | Sets the file type for scan data. For details, refer to [File Type]. | ||
[Encryption] | Sets the password for browsing the scan data to be stored. For details, refer to [Encryption]. | ||
[File Name] | Sets the file name for scan data. For details, refer to [File Name]. | ||
[Color Compression] | Sets the compression level for scan data. For details, refer to [Color Compression]. | ||
Remarks | - | ||
Reference | - | ||

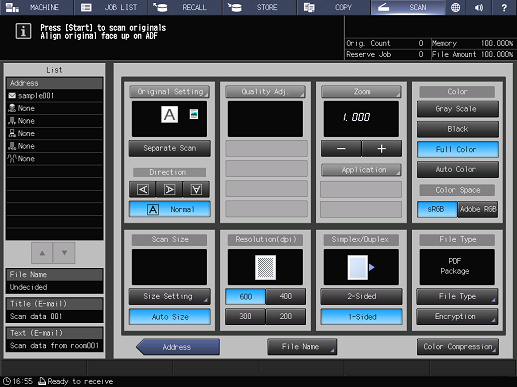

Screen access | Touch panel - [SCAN] - Select a destination. - [Scan Settings] |
Original orientation: In [Direction], press the key that indicates the same direction as the vertical direction of the original.
Scan density: Select [Lighter]/[Darker]/[Normal] of [Quality Adj.] to set the density. Set the density between -4 and +4.
If the scan density key is not displayed, press [Quality Adj.] to display the [Quality Adjustment] screen, and set the density.
Scan zoom ratio: Select [-]/[+] to set the zoom ratio. Set the full size, "1.000", or zoom ratio.
[Color]: Sets the data color.
[Resolution(dpi)]: Sets the scan resolution.
[Simplex/Duplex]: Sets whether the original is simplex or duplex.
[Original Setting]: Sets conditions for the original. Set the orientation and image quality of the original, and the 2-sided original. For details, refer to [Original Setting].
[Quality Adj.]: Sets image quality conditions. Set the scanning density, tone, brightness, contrast, etc. For details, refer to [Quality Adj.].
[Zoom]: Sets the zoom ratio for scanning. For details, refer to [Zoom].
[Application]: Sets application functions. Configure various settings such as erasing the outside of an original or adding a stamp. For details, refer to [Application].
[Color Space]: Select the type of RGB color space. For details, refer to [Color Space].
[Scan Size]: Manually set the range to scan the original. For details, refer to [Scan Size].
[File Type]: Sets the file type or password to store scan data. For details, refer to [File Type].
[Encryption]: Sets the password for browsing the scan data to be stored. For details, refer to [Encryption].
[File Name]: Enter the file name for the scan data to send. For details, refer to [File Name].
[Color Compression]: Sets the compression level for scan data. For details, refer to [Color Compression].
Scanning starts, and the scan data is sent to the selected destination.
When dividing the original into multiple parts for scanning, press [Separate Scan] and [Color Compression], and then press Start on the Control panel each time the original is loaded.
