Hold data (scan jobs) that is scanned on the ADF or Original glass, or store such data on the HDD.
You can assign a file name to a store job, or specify data scan conditions.
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Store Setting] | Sets the storage method, or assigns a file name to a job. For details, refer to [Store Setting]. | |
[Original Setting] | Sets conditions for the original that will be stored. For details, refer to [Original Setting] Screen. | ||
[Separate Scan] | Scans jobs that were scanned multiple times as a single job. Before starting scanning, select [Separate Scan]. After scanning is completed, release [Separate Scan]. | ||
[Direction] | Select the orientation of the original. For details, refer to [Direction]. | ||
[Quality Adj.] | Adjusts the density or outline of the entire original. For details, refer to [Quality Adjustment] Screen. | ||
[Zoom] | Sets the zoom ratio. For details, refer to [Zoom] Screen. | ||
[Frame Center Erase] | Configures a setting to erase black copy marks along borders or center lines of the originals when scanning a thick original, such as a book. For details, refer to [Frame Center Erase]. | ||
[Full Image Area] | Scans the entire page as an image. | ||
[Annotation] | Prints a pre-registered character string on a scanned image. For details, refer to [Annotation]. | ||
[Size Setting] | Manually set the scanning range. For details, refer to [Size Setting]. | ||
[Auto Size] | Automatically sets the scanning range. For details, refer to [Auto Size]. | ||
[2-Sided] | Scans both sides of the original. For details, refer to [Simplex/Duplex]. | ||
[1-Sided] | Scans only a single side of the original. For details, refer to [Simplex/Duplex]. | ||
[Single Color] | Sets a single color from among 6 types of colors. For details, refer to [Single Color]. | ||
[Black] | Sets black even if the scanned original contains colors. For details, refer to [Color]. | ||
[Full Color] | Specify full color. For details, refer to [Color]. | ||
[Auto Color] | Detects whether the scanned original is set to [Full Color] or [Black], and automatically sets [Full Color]/[Black]. For details, refer to [Color]. | ||
Remarks | - | ||
Reference | - | ||

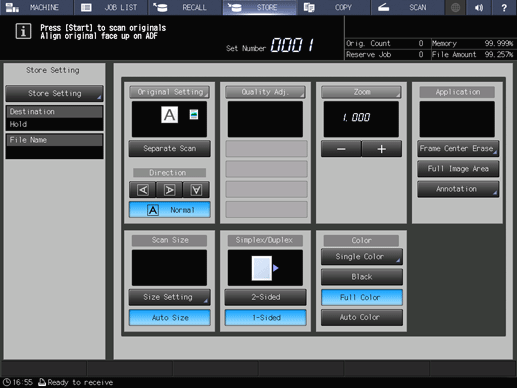

Screen access | Touch panel - [STORE] |
