Set the document to be printed.
Either one of the following options is required to use [Fold].
The following options are required to use [Staple].
Either one of the following options is required to use [Punch].

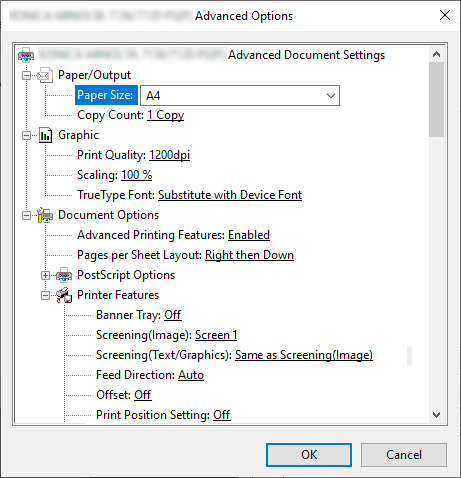

Setting item | Description | |
---|---|---|
[Paper Size] | Paper size available in this system | Sets the paper size.
|
[Copy Count] | [1] to [9999] | Specify the number of sets. The displayed window varies depending on which application is used. |
Setting item | Description | |
---|---|---|
[Print Quality] | [600dpi], [1200dpi] | Set the resolution when printing image data, etc. The resolution can be selected according to the use application of printouts. |
[Scaling] | [1%] to [1000%] | Set the scaling ratio for printouts. A part of the original image may be lost depending on the specified scaling ratio. |
[TrueType Font] | [Substitute with Device Font], [Download as Softfont] | Set the printing font. When the target font is not found, you can select whether to use a similar font or download the TrueType font. |
Setting item | Description | |
---|---|---|
[Advanced Printing Features] | [Enabled], [Disabled] | Make this setting when enabling the [Pages per Sheet Layout] function. |
[Pages per Sheet Layout] | [Right then Down], [Down then Right], [Left then Down], [Down then Left] | Set the original page sorting order when combining a multi-page original with a single sheet for printing. |
Setting item | Description | |
---|---|---|
[PostScript Options] | [Optimize for Speed], [Optimize for Portability], [Encapsulated PostScript (EPS)], [Archive Format] | Set a PostScript output option. In general use, we recommend that you set to [Optimize for Speed]. [Optimize for Speed]: Select this item when making print processing faster. [Optimize for Portability]: Select this item when creating a file based on the Adobe Document Structure Code (ADSC). [Encapsulated PostScript (EPS)]: Select this item when storing the original in EPS format. [Archive Format]: Select this item when printing a file using a PostScript printer of an unknown type. |
[TrueType Font Download Option] | [Automatic], | Set the mode to download the TrueType font. For details, refer to [Advanced]. |
[PostScript Language Level] | 1 to 3 | Set a PostScript language level. To use more functions, increase the numeric value. |
[Send PostScript Error Handler] | [Yes], [No] | Configure the setting to send an error message. This function allows you to display an error message via the driver when an error occurs on this system while a print job is being executed from the driver. |
[Mirrored Output] | [Yes], [No] | Configure the setting for mirrored printing. This function allows you to perform mirrored printing without creating a new original that is flipped horizontally. |
[Negative Output] | [Yes], [No] | Configure the setting for monochrome inversion. |
Setting item | Description | |
---|---|---|
[Banner Tray] | [Off], [Auto], Paper tray list | Set the paper tray used to print a banner page. A banner page contains a sender and title, thereby, preventing printouts from being handled erroneously. |
[Screening(Image)] | [Screen 1], [Screen 2], [Stochastic] | Set the screen group to assign to an image object. The screen type set in this system is assigned to the screen group. For details, refer to [Custom Screen]. |
[Screening(Text/Graphics)] | [Screen 1], [Screen 2], [Same as Screening(Image)] | Set the screen group to assign to text or graphics. The screen type set in this system is assigned to the screen group. For details, refer to [Custom Screen]. |
[Feed Direction] | [Auto], [Long Edge], [Short Edge] | Set the paper feed direction. To automatically set the feed direction based on the original or paper, select [Auto]. |
[Offset] | [Off], [On] | Outputs paper while shifting the position for each number of copies. This function is convenient when you want to copy multiple sets of a document because printouts are divided by each set. |
[Print Position Setting] | [Off], [Left], [Center], [Right] | Sets the position to print an original image. |
[Weight] | [No Setting], Weight list | Set the weight for the paper to load into a paper tray. |
[Colored Paper] | [No Setting], Colored paper list | Set the color of the paper to load into a paper tray. |
[Pre-Punched] | [Off], [On] | Set when the paper loaded in the paper tray is already punched. |
[Output Tray] | [Default], Output tray list | Set the output tray. Selecting [Default] outputs to the default output tray. |
[External Finisher(Middle)] | [Off], [On] | Configure this setting when using an external finisher (middle of configuration). |
[External Finisher(End)] | [Off], [On] | Configure this setting when using an external finisher (end of configuration). |
[Output Order] | [Face Down], [Face Up] | Sets the print side orientation to output a job. |
[N to 1] | [Off], [On], [No Setting] | Outputs pages in reverse order (from the last page). |
[Pile Setting] | [Forbid], [Allow], [Allow (Previous)], [Allow (Next)] | Specify whether to allow the next job to pile up on top of the previous job in the stacker when printing multiple jobs successively. For details, refer to [Pile Setting]. |
[Binding Position] | [Left Bind], [Top Bind], [Right Bind], [Left Bind (Landscape)], [Top Bind (Landscape)], [Right Bind (Landscape)] | Set the binding position. |
[Print Type] | [1-Sided], [2-Sided] | Set 1-sided or 2-sided printing. |
[Imposition] | [Off], [Booklet], [Adhesive Binding], [2 in 1], [2 Repeat], [2 Repeat Reversal (Left)], [2 Repeat Reversal (Right)], [2 Repeat Reversal (Top)], [2 Repeat Reversal (Bottom)], [4 Repeat], [4 in 1 (Vertical)], [4 in 1 (Horizontal)], [8 Repeat] | Set the imposition method to perform imposition printing. Prints are made while multiple original images are arranged on 1 sheet.
|
[Book Spread] | [Off], [On] | Print original data of different paper sizes in book spread. This function binds even a large size of original into a book without changing the size. |
[Staple] | [Off], [Left Corner], [Right Corner], [2 Positions (Wide)], [2 Positions (Narrow)], [2 Positions (Narrow+)] | Sets the binding position and pitch for stapling. To use this function, set to an option other than [Booklet] or [Adhesive Binding] in [Imposition]. The selectable items vary depending on the optional devices mounted on this system. |
[Punch] | [Off], [2-Hole], [3-Hole], [4-Hole], [Multi Punch], [Double Multi Punch] | Sets the number of punch holes. Some settings may not be displayed depending on the sales area and destination. |
[Fold] | [Off], Folder list | Set the fold type. For details about Fold, refer to [Fold]. The selectable items vary depending on the optional devices mounted on this system. |
[Spine Corner Forming] | [Off], [On] | Applies pressure to the spine cover of a folded and stapled booklet to make it a square spine. |
[Spine Corner Forming Strength] | [Weak+], [Weak], [Normal], [Strong], [Strong+] | Sets the strength to push the spine cover when forming the spine corner. |
[Crease] | [Off], [1 Piece], [2 Pieces] | Set the number of creases attached on paper. This function facilitates creasing and prevents toner peeling that occurs when paper is creased. Saddle Stitcher SD-513 with Creaser Unit CR-101 mounted is required to use this function. |
[Image Shift] | [Off], [On] | Configure the setting to shift the image position. |
[180°Rotate] | [Off], [On] | Rotates an image by 180 degrees for printing. This function allows you to print an image in the desired orientation even on paper of which the paper feed direction is limited, including tab paper. |
[Front Cover] | [Off], [Print], [Blank] | Configure the setting for the front cover. |
[Front Cover Tray] | [Off], Paper tray list | Set a paper tray when using paper different from the body as the front cover. This function allows you to finish a sturdy booklet using thick paper or coated paper. |
[Back Cover] | [Off], [Print], [Blank] | Configure the setting for the back cover. |
[Back Cover Tray] | [Off], Paper tray list | Set a paper tray when using paper different from the body as the back cover. This function allows you to finish a sturdy booklet using thick paper or coated paper. |
[PI Front Cover Tray] | [Off], [PI Tray 1], [PI Tray 2], [PI-PFU Tray 1], [PI-PFU Tray 2], [PI-PFU Tray 3] | Set a paper tray used to insert paper that is different from the body into the PI front cover. This function allows you to finish a sturdy booklet using thick paper or coated paper. |
[PI Back Cover Tray] | [Off], [PI Tray 1], [PI Tray 2], [PI-PFU Tray 1], [PI-PFU Tray 2], [PI-PFU Tray 3] | Set a paper tray used to insert paper that is different from the body into the PI back cover. This function allows you to finish a sturdy booklet using thick paper or coated paper. |
[Perfect Binding Settings] | [Off], [Cover Blank], [Cover Print 1in1], [Cover Print 2in1], [Cover Print 3in1] | Set the cover printing method for perfect binding. This function allows you to configure the appropriate setting to fit the images printed on the front cover, spine, and back cover. Perfect Binder PB-503 is required to use this function. |
[Perfect Binding Cover Tray] | [Off], Paper tray list | Set the paper tray used for perfect binding covers. Perfect Binder PB-503 is required to use this function. |
[Perfect Binding Cover Duplex] | [Off], [On] | Configure the setting to perform 2-sided printing for perfect binding covers. Perfect Binder PB-503 is required to use this function. |
[Perfect Binding Cover Trim] | [Off], [On] | Configure the setting to trim both cover edges for perfect binding. Perfect Binder PB-503 is required to use this function. |
[Perfect Binding Cover Crease] | [Off], [Spine], [Gutter], [Spine + Gutter] | Configure settings to crease the front cover for perfect binding. Saddle Stitcher SD-513 with Creaser Unit CR-101 mounted and Perfect Binder PB-503 are required to use this function. |
[Print Mode] | [Print], [Wait Mode], [Proof Print], [Proof Print (1st Sheet)], [Hold Job], [Hold Job and Print], [Spool] | Set a print method. [Print]: Prints a print job without storing it on the HDD. [Wait Mode]: Waits until a job is continued or canceled. [Proof Print]: Waits until a job is continued or canceled after 1 copy of the job was printed. [Proof Print (1st Sheet)]: Waits until a job is continued or canceled after only the first page of the job was printed. [Hold Job]: Holds a print job in the system. For details about hold jobs, refer to [Hold Job]. [Hold Job and Print]: Holds a print job in the system before printing. [Spool]: Prints a job after RIP processing was performed. |
[Smoothing] | [Off], [On] | Smoothly prints the outline of text, graphics, or image of density 100%. The smoothing function is only applied to parts that are a single CMYK color. |
[Thinning] | [Off], [On] | Controls the boldness of the text or line images. |
[Emphasis] | [Off], [On] | Clearly prints the outline of gray text, graphics, or image. |
[Outline Settings] | [Off], [Text/Graphics], [Text/Graphics/Image] | Select the target to set the following outline processing.
|
[1 Dot Line Emphasis] | [Off], [On] | Emphasize a 1-dot ultrafine line. This function arranges the finishing when the line is thin and image quality is poor. |
[Image Density Selection] | [Standard], [-10] to [+1], [Toner Save], [Draft Print] | Set the print density. |
[Use CIE Color] | [Off], [On], [Default] | Make prints via the color space defined in the International Commission on Illumination (CIE). This function enables gradation to be increased above normal, but it may take longer to output. |
[Auto Image Adjustment] | [Off], [Position/Gradation], [Position] | Conduct the automatic image adjustment when printing. This function allows you to adjust the image misalignment or gradation. Intelligent Quality Optimizer IQ-501 is required to use this function. |
[Date/Time] | [Off], [All Pages], [1st Page Only] | Configure the setting to print the date and time. |
[Font] | [Gothic 8 pt] to [Gothic 14 pt], [Ming 8 pt] to [Ming 14 pt] | Sets the font and font size to print the date and time. |
[Position] | [Upper Left], [Mid Left], [Lower Left], [Upper Mid], [Mid], [Lower Mid], [Upper Right], [Mid Right], [Lower Right] | Set the position to print the date and time. |
[Date] | ['10/11/23], [Nov 23,2010], [11/23/'10], [23 Nov,2010], [23/11/'10] | Set the date format. |
[Time] | [Off], [1:23PM], [13:23] | Set the time format. |
[Copy Protect] | [Off], [On] | Embed text and background in the entire sheet when printing. This setting prevents information from being leaked so that no unauthorized copying is performed. |
[Preset Stamp] | [Off], [Copy], [Invalid], [Illegal Copy], [Invalid Copy] | Set the type of the text embedded for printing. |
[Back Pattern] | [Off], [Cherry Blossoms], [Arabesque], [Lattice] | Set the background embedded for printing. |
[Tandem Mode] | [Off], [On] | When multiple copies of an original are printed, 2 printers are connected in parallel to divide the copies being printed. |
[Color Bar] | [Off], [Left], [Top], [Right], [Bottom], [Image Controller Default] | Set the color bar printing position. You can confirm whether each color has been printed correctly by printing the color bar. |
[Color Settings Information] | [Off], [Left], [Top], [Right], [Bottom], [Image Controller Default] | Set the printing position of color setting information. Printing the color setting allows you to confirm the printing setting when printing a sample. |
[Number of Lines] | [1 Line] to [5 Lines] | Set the number of lines for the printed color setting information. |
[Printed Items - Date/Time] | [Off], [On] | Prints the printing date and time as color setting information. |
[Printed Items - Job Name] | [Off], [On] | Prints the job name as color setting information. |
[Printed Items - User Name] | [Off], [On] | Prints the user name as color setting information. |
[Printed Items - Printer Name/Model Name] | [Off], [On] | Prints the name and model name of this system as color setting information. |
[Printed Items - ROM Version] | [Off], [On] | Prints the ROM version of Image Controller as color setting information. |
[Printed Items - Tone Curve Name] | [Off], [On] | Prints the applied tone curve name as color setting information. |
[Printed Items - Screening] | [Off], [On] | Prints the applied screen setting as color setting information. |
[Printed Items - Use CIE Color] | [Off], [On] | Prints the CIE color space usage status as color setting information. |
[Printed Items - Comment] | [Off], [On] | Prints a comment containing up to 200 characters as color setting information. However, all of a comment may not be printed depending on the number of printed items or the number of lines. |
[Printed Items - Character Size] | [4pt] to [36pt] | Sets the character size for color setting information. |
[Auto Duplex Adjustment] | [Off], [On] | Configure settings to perform Auto Duplex Adjustment using the actual image of a job. For details, refer to [Workflow]. |
