[Paper Type & Weight]
Overview
Display the paper measurement result.
[Paper Type & Weight] allows you to check the following items.
Item | Description |
|---|---|
[Paper Type] | Displays the type of the measured paper. One of the following items is displayed. [Plain] [Fine] [Coated-G] [Coated-M] |
[Weight(g/m2)] | Displays the weight of the measured paper. |
Specifications
Category | Print Workflow | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | This function requires one of the following optional devices. Intelligent Media Sensor IM-101 Paper Feeder Unit PF-712 Paper Feeder Unit PF-713 Paper Feeder Unit PF-812 | ||
Required items | - | ||
Setting items | [Change Unit] | Select the unit of the displayed weight. The unit is switched each time the key is pressed. | |
[Detect Paper Info] | Moves to the [PRINT MODE] screen. | ||
[To Single Tray] | Only applies the setting to the selected paper tray. | ||
Remarks | - | ||
Reference | For details about the paper size setting in addition to the paper type and weight, refer to [Paper Setting]. | ||
Screen access | Touch panel - [MACHINE] - [Paper Measuring] - [Paper Type & Weight] | ||
Procedure (Using Intelligent Media Sensor IM-101)
1

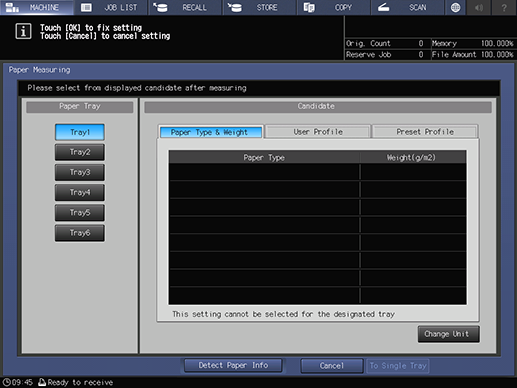

Select the paper tray to load with[Paper Tray].
2
For measuring purposes, prepare paper (1 sheet) to load in the paper tray.
3
Check if READY Lamp of Status Indicator Lamp on Intelligent Media Sensor IM-101 is lit in blue.
For information about the display of Status Indicator Lamp in Intelligent Media Sensor IM-101, refer to What Is the Media Sensor?.
4

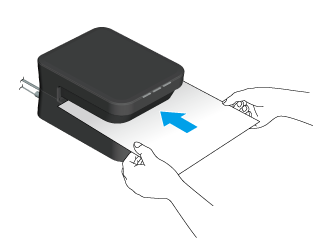

Insert the sheet prepared in step 2 into the back of Intelligent Media Sensor IM-101 with the print side facing up.
Match the center of the paper to the center of the opening of Intelligent Media Sensor IM-101, and insert the paper in the same direction as the actual feed direction.
The READY Lamp of Status Indicator Lamp lights up yellow green, and paper is measured.
5
When READY Lamp of Status Indicator Lamp turns off, take out the paper.
6

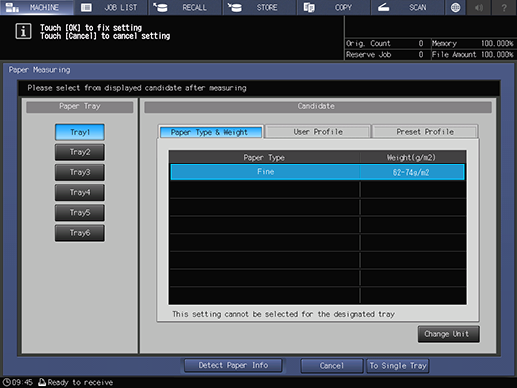

Select the measurement result.
Select from the displayed candidates.
7
Press [To Single Tray].
The measurement result is reflected in the [Paper Tray] field on the [MACHINE] screen.
Procedure (Using the Media Sensor Mounted on this System)
1
Select the paper tray loaded with the paper to be measured.
2
Press [Detect Paper Info].
The [PRINT MODE] screen is displayed.
Multiple paper trays can be selected even on the [PRINT MODE] screen. The paper in the last selected paper tray is measured.
You can set the output destination of the paper used for measuring in [Output Setting].
3
Press Start on the Control panel.
Paper is measured.
4
Press [Exit PrintMode] to return to the setting screen.
5
Select the measurement result.
Select from the displayed candidates.
6
Press [To Single Tray].
The measurement result is reflected in the [Paper Tray] field on the [MACHINE] screen.
