[Paper Check]
Overview
Measure the paper loaded in the selected paper tray, and manually check that the same type of paper as that specified in [Paper Type] is loaded in the paper tray.
By checking the paper type before printing, you can prevent misprints such as printing on paper that does not match the settings.
Tips
- In [Paper Check], measure the paper type and weight.
- [Paper Check] can also be done automatically before [Both Sides Adj.]. For details, refer to [AutoMeasure] - [Paper Check].
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||

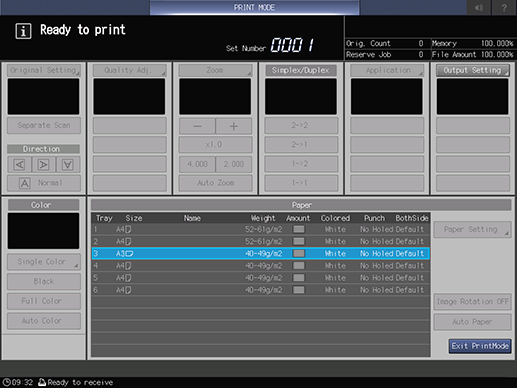

Setting items | [Output Setting] | Sets the destination where to output the measured paper. | |
[Exit PrintMode] | Closes the [PRINT MODE] screen. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Paper Setting] - [Recall] | ||
Procedure
1

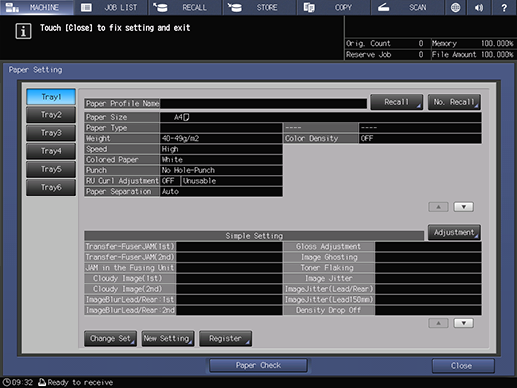

Select the paper tray to measure the paper.
2
Select [Paper Check].
3
Press Start of Control panel.
Paper is measured and output from the specified output destination.
If the [Paper Type] setting does not match the paper in the paper tray, change the setting or paper profile.
When the paper type and weight do not match | When the compatibility with the paper profile is low |
|---|---|
