Select a screen type to be used for Screen 1, Screen 2, and Stochastic, respectively.
Stochastic, however, is always available.
The screen types have the following features. Use this information as a guide to select an appropriate one.
Type | Description |
---|---|
Dot210 | Uses ultrafine dots to reproduce an image. Suitable for office documents including graphs and small texts. |
Dot170 | Uses small dots to reproduce an image. Suitable for office documents. |
Dot140 | Uses dots to reproduce an image. Suitable for office documents including photos. |
Dot120 | Default number of lines Suitable for office documents including photos. |
Dot105 | Uses coarse dots to reproduce an image. Suitable for printing monochrome images and posters. |
Dot85 | Uses coarse dots to reproduce an image. Suitable for printing monochrome images and posters. |
Type | Description |
---|---|
FM 1 | Uses aperiodic dots to reproduce an image. Suitable for printing maps, photos of clothes or textiles finely designed. |
FM 2 | Uses aperiodic dots to reproduce an image. Approximately 250 lines or equivalent are used, focusing on the color stability. Suitable for printing photos of clothes or fine-design textiles in larger sizes. |
FM 3 | Uses aperiodic dots to reproduce an image. An image is reproduced with approximately 200 lines or equivalent, focusing color stability and granularity. Suitable for printing photos of clothes or fine-design textiles in larger sizes with color stability and granularity that ensure the quality equivalent to the AM screen quality. |
For details about the adjustment after changing the screen types, refer to Adjustment Flow when changing the screen.
Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

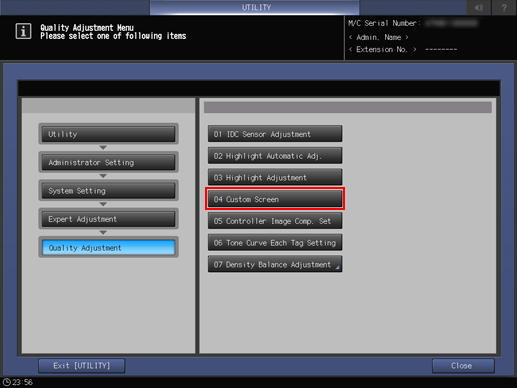

Press System Setting on the Administrator Setting Menu screen, and then press Expert Adjustment, Quality Adjustment, and Custom Screen in sequence.

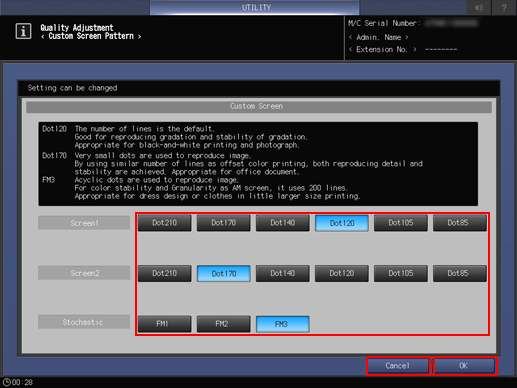

The Custom Screen Pattern screen is displayed.
Select the screen type according to what to print.
Dot120 is recommended for the Screen 1. We recommended to use Screen1 for usual operation. If necessary, specify the screen setting to Screen 2 or Stochastic according to your printing task.
Press OK to complete the setting.
supplementary explanationTo cancel the change, press Cancel. In either case, the screen returns to the Quality Adjustment Menu screen.
If you have changed the screen type, press Exit [UTILITY] on the Quality Adjustment Menu screen to return to the MACHINE screen.
The Gamma Adjustment will start automatically.
When the Gamma Adjustment is completed, reenter the Administrator Setting mode and proceed to the Highlight Adjustment for the changed screen type.
