Preparation

It is necessary to connect to the relevant networks when using the scan function, or the print function of the system using the Image Controller.

Firstly, prepare your setup so that you are able to connect the system to a network.

System and Image Controller Functions Available for Use on Networks

This section describes the preparations required for connecting to a network.

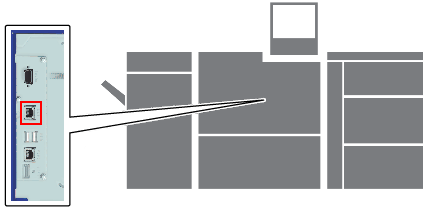

Insert a network cable into the system's NIC.
- Be careful not to mistake a module cable (phone line) for a network cable.

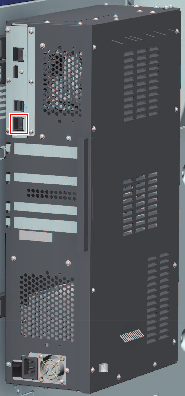

Insert a network cable into the Image Controller's NIC.
Check that the NIC light (lower) is on.
- The upper light indicates the communication speed, while the lower one indicates the network connection status.
Configure the IP address.
Refer to [IPv4 Settings] if using IPv4.
Refer to [IPv6 Settings] if using IPv6.
Check that communications are happening on the network without issues. For details, refer to [PING Confirmation].
- If the network is allowing communications, then preparations are complete.
