Screen

Overview
Screen Access
Screen

Overview

This is the Web Connection login screen.

Use the following methods to access the login screen.
  • Enter the IP address of the Image Controller in the URL field of the browser, and press [Enter]. For details about how to confirm the IP address, refer to [TCP/IP Setting].
    % If the IP address is 192.168.1.50, the URL is as follows: http://192.168.1.50/wcd/top.xml
  • Click [Configuration] - [Web Connection] in AccurioPro Print Manager. For details, refer to [Web Connection].

Screen Access

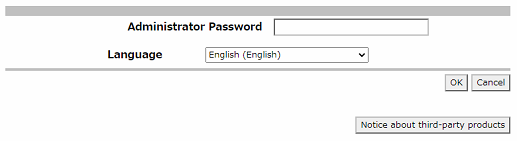

Browser - Login screen

Screen

Common buttons

Button name

Description

[OK]

Logs in to Web Connection.

[Cancel]

Does not log in to Web Connection.

[Notice about third-party products]

Displays a notification about the third party product.
