TCP/IP connection

TCP/IP printing is performed via the network using the TCP/IP protocol.

  1. Follow the procedure on [Administrator Setting] to display the Administrator Setting Menu screen.

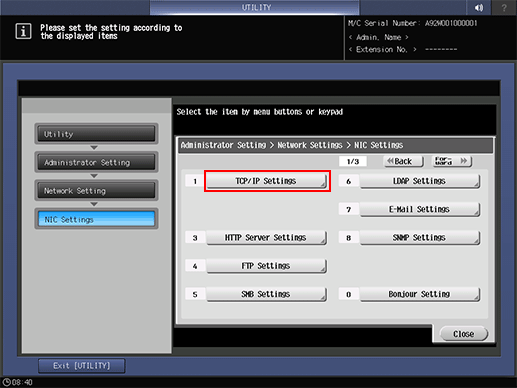

  2. Press Network Setting on the Administrator Setting Menu screen, and then press NIC Settings.

    The NIC Settings screen is displayed.

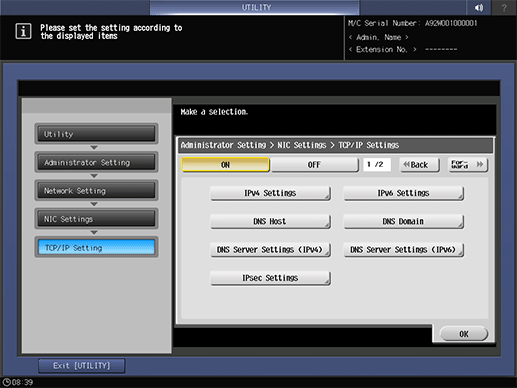

  3. Press TCP/IP Settings.

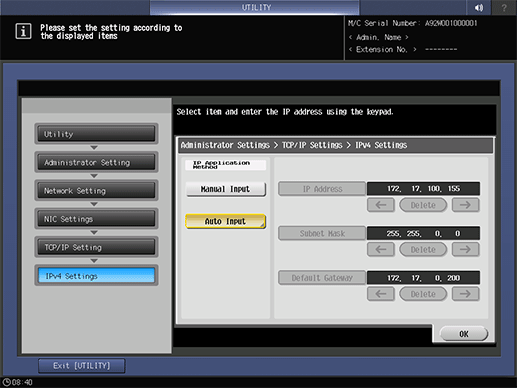

    To check the IP address (IPv4), for example, press IPv4 Settings.

  4. Make a setting for each item.

  5. Press Close.

    The display returns to the Network Setting Menu screen.

  6. Configure settings on the computer side.

    In Windows:

    toInstalling the printer driver

    In Macintosh:

    toInstalling the printer driver
